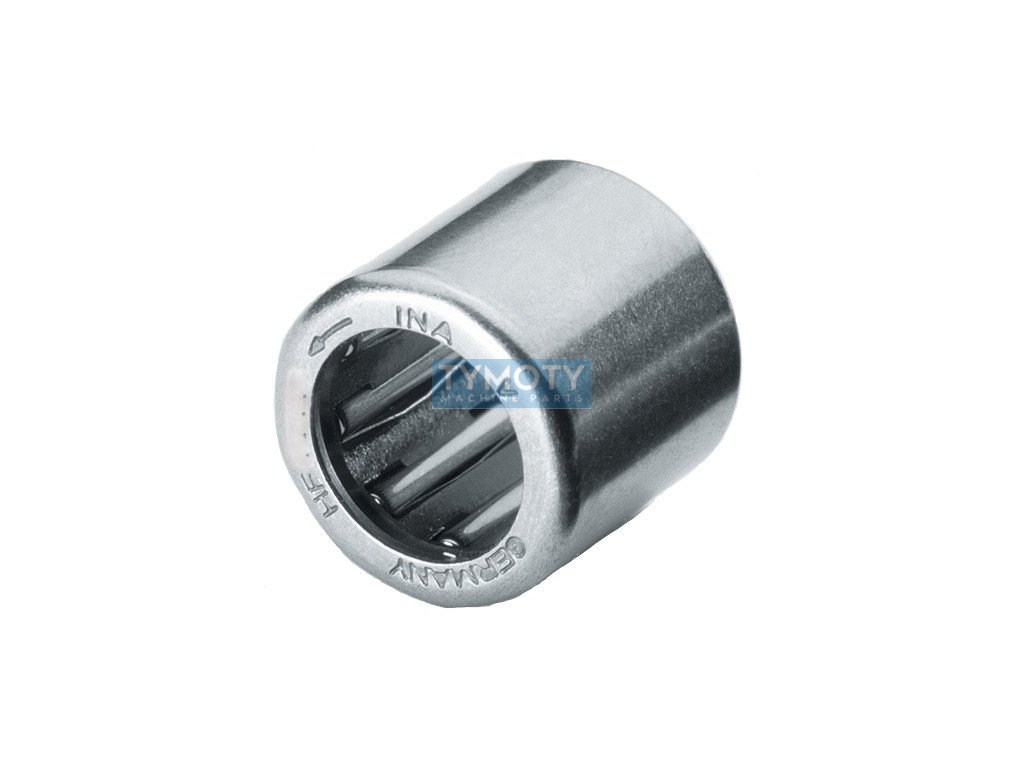

INA HF 1012-L564 one-way needle roller bearing with pressed housing

Product detailed description

INA HF 1012-L564 is a one-way needle roller bearing with a pressed sleeve, which is designed for specific applications requiring one-way torque transmission. This bearing is manufactured by the renowned manufacturer INA, which is part of the Schaeffler Group, known for its high quality and reliability.

The HF 1012-L564 bearing has an inner diameter of 10 mm, an outer diameter of 14 mm and a width of 12 mm. Its design is based on the principle of a sleeve freewheel without a bearing, which means that it allows free movement in one direction and blocks movement in the opposite direction. This type of bearing is ideal for applications where one-way movement is required, such as in gearboxes or freewheel mechanisms.

The material used to manufacture the bearing is high-quality steel, which guarantees a long service life and wear resistance. The bearing is unsealed, which means that it is not protected from external dirt and moisture, and is therefore suitable for applications where these factors are not critical.

The bearing's operating temperature range is from -10 °C to +70 °C, which allows it to be used in various climatic conditions. The bearing is without knurling on the outer ring and has a cylindrical hole profile, which simplifies its assembly and integration into various mechanical systems.

Weighting only 0.004 kg, this bearing is lightweight, which contributes to reducing the overall weight of the equipment in which it is used. Its compact dimensions and design features make the HF 1012-L564 bearing an ideal choice for applications where space is limited and high torque transmission efficiency is required.
