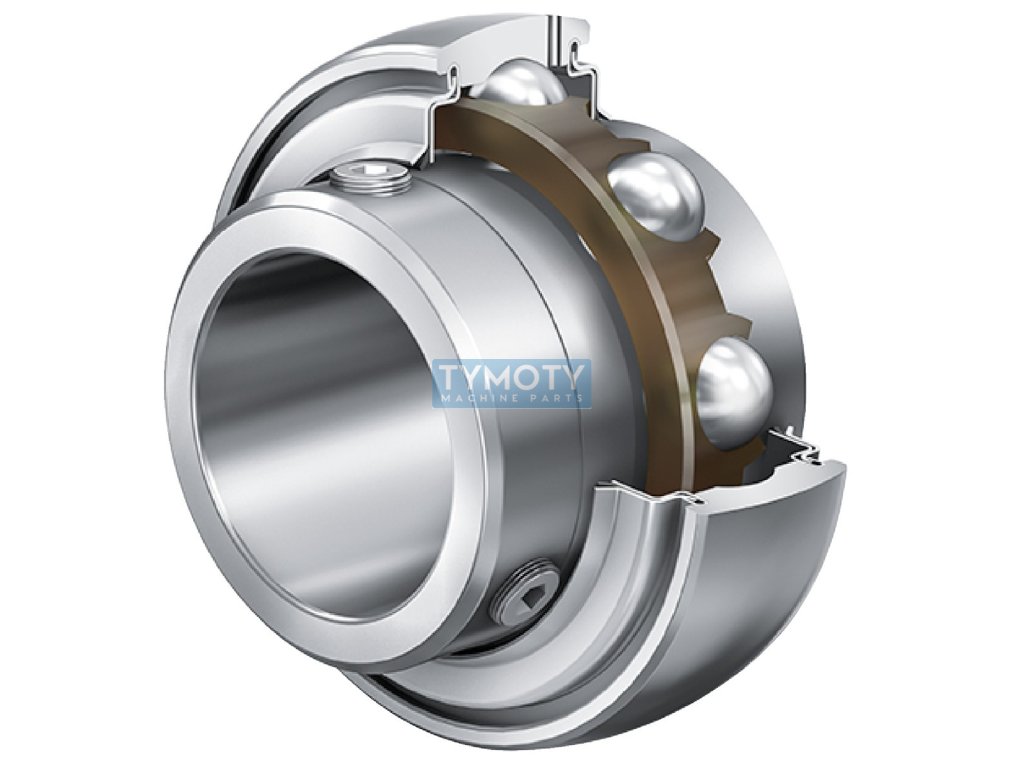

INA GYE 40-KRR-B clamping bearing

Product detailed description

INA GYE 40-KRR-B is a clamping bearing that is characterized by high quality and precision, which makes it ideal for various industrial applications. This bearing has an inner diameter (d) of 40 mm, an outer diameter (D) of 80 mm and an overall width (B) of 49.2 mm. Its design includes a spherical outer ring and a cylindrical bore, which allows for the effective transmission of radial and axial loads.

The bearing is made of standard steel for rolling bearings, which guarantees its durability and long service life. It is equipped with a double-sided lip seal, which provides protection against dirt and moisture, thereby extending its service life. The operating temperature range is from -20 °C to +120 °C, which allows it to be used in various climatic conditions.

The inner ring of the bearing is widened on both sides, which improves its stability and fastening is ensured by set screws. The bearing falls into the accuracy class P0/PN, or ABEC 1, which means a basic level of accuracy suitable for common applications. The plastic cage contributes to reducing the weight of the bearing, which is 0.61 kg, and allows for relubrication, which is practical for maintenance and extending the service life.

This bearing is ideal for applications where reliability and easy maintenance are required, while its design features allow for use in various mechanical devices and systems. The manufacturer INA, part of the Schaeffler Group, is known for its precision and quality, which ensures that the GYE 40-KRR-B bearing will meet the expectations of even the most demanding customers.
