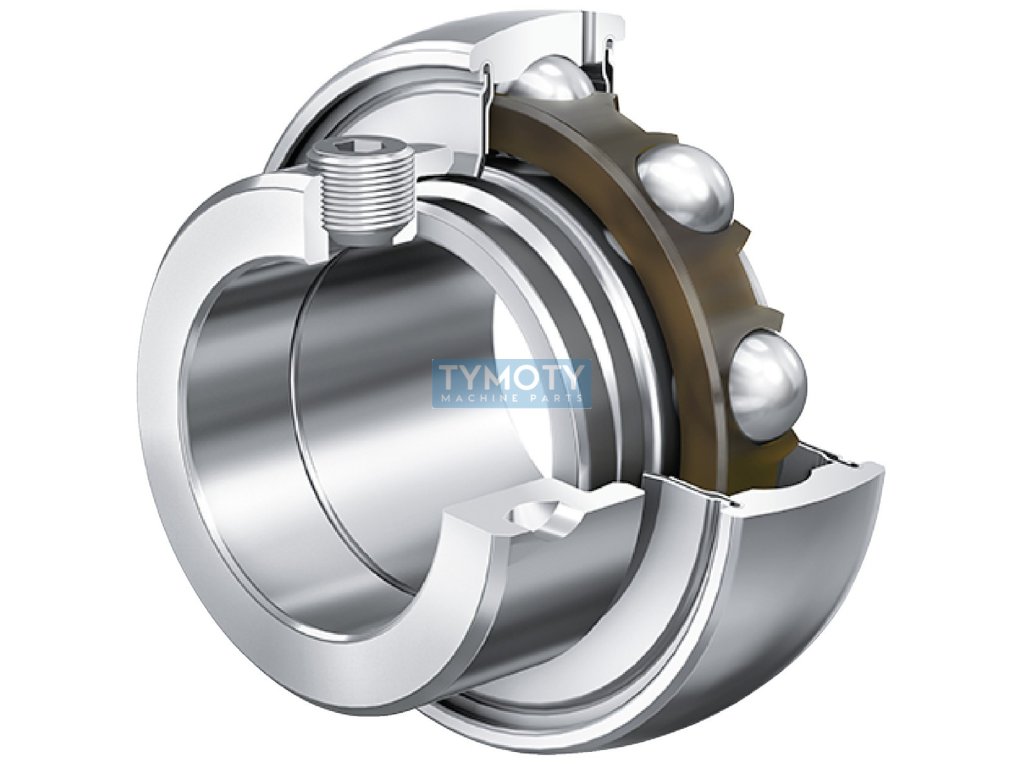

INA GRAE 35-XL-NPP-B clamping bearing

Product detailed description

INA GRAE 35-XL-NPP-B is a clamping bearing designed for applications requiring reliable and precise positioning of rotating components. This bearing is part of the INA product portfolio, which is known for its quality and reliability in the field of bearings.

The bearing has an inner diameter (d) of 35 mm, an outer diameter (D) of 72 mm and a width (B) of 39 mm. The shape of the outer ring is spherical, which allows for compensation of misalignment during assembly. The inner ring is widened on one side, which increases stability and allows for better load distribution. The hole profile is cylindrical, which is a standard shape for this type of bearing.

The bearing is made of standard steel for rolling bearings, which ensures high wear resistance and long service life. The operating temperature range is from -20 °C to +120 °C, which makes it suitable for a wide range of applications. The bearing is equipped with a double-sided lip seal, which effectively protects against the ingress of dirt and ensures that the lubricant is retained inside the bearing.

The bearing is mounted using an eccentric mounting ring, which allows for easy and quick installation. The bearing is also designed with the possibility of lubrication, which extends its service life and improves operating properties. The running accuracy is in class P0/PN or ABEC 1, which is the standard accuracy for common applications.

With a weight of 0.47 kg, this bearing is suitable for various industrial applications where high reliability and durability are required. The overall design and properties of the GRAE 35-XL-NPP-B bearing make it an ideal solution for a wide range of technical applications where it is necessary to ensure smooth and efficient transmission of rotational motion.
