INA GE 70-KRR-B bearing

Product detailed description

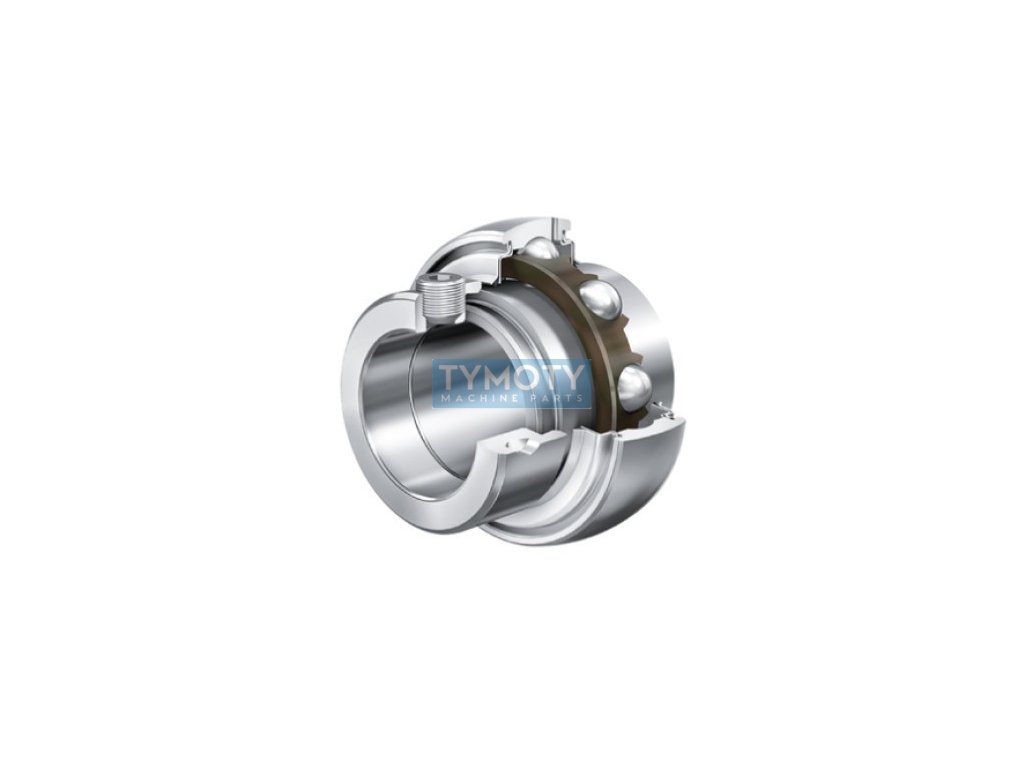

The INA GE 70-KRR-B bearing is a clamping bearing with an inner diameter of 70 mm, an outer diameter of 125 mm and a width of 66.1 mm. This bearing is designed for applications where reliable and precise shaft support is required. It features a cylindrical bore and is made of high-quality steel for rolling bearings, which guarantees its long service life and wear resistance.

The bearing is equipped with a double-sided lip seal, which provides protection against dust and dirt, thereby extending its service life. The temperature range for the operation of this bearing is from -20 °C to +120 °C, which allows it to be used in various industrial conditions. The running accuracy is in class P0/PN, respectively. ABEC 1, which is the standard accuracy for common applications.

The inner ring of the bearing is widened on both sides, which helps to better distribute the load and contributes to the stability of the entire system. Thanks to the eccentric mounting ring, the bearing is mounted simply and efficiently, which reduces the time required for assembly and maintenance. The outer ring has a spherical profile, which allows for compensation of misalignment between the bearing and the shaft.

The bearing is designed with the possibility of lubrication, which allows its maintenance and extends its service life in demanding conditions. With a weight of 2.08 kg, it is suitable for various industrial applications where robust and reliable shaft support is required. The manufacturer INA, part of the Schaeffler Group, is known for its high quality and innovation in the field of rolling bearings, which guarantees the reliability and performance of this component.
