INA GE 70 AW-A axial joint bearing

Product detailed description

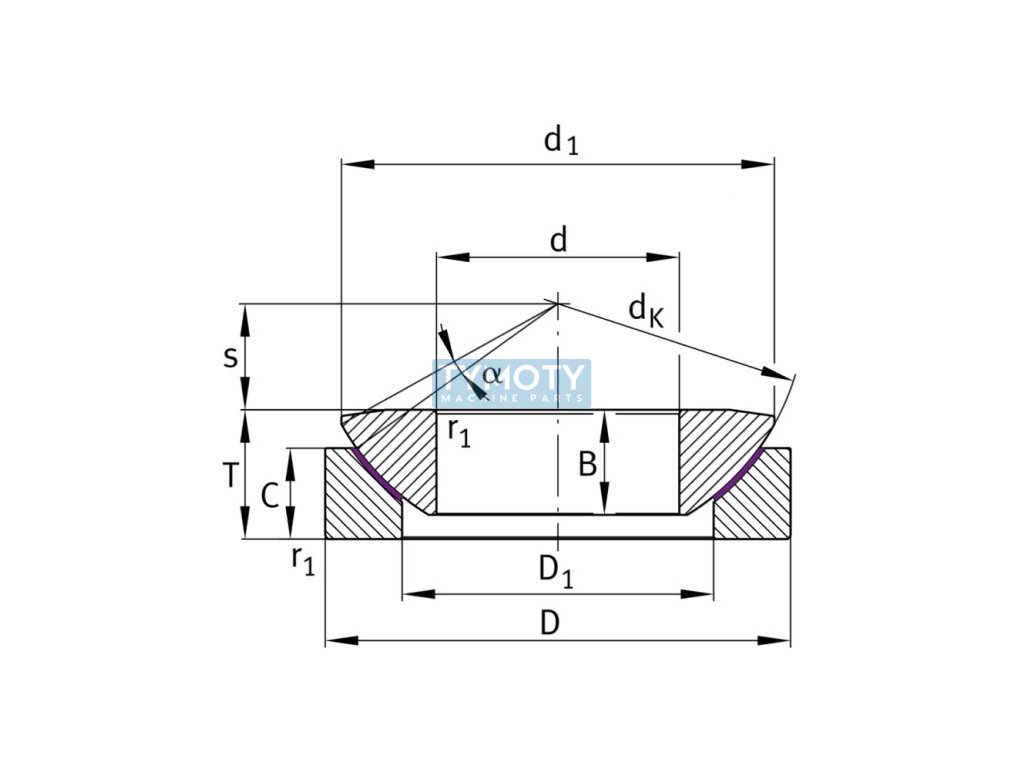

The INA GE 70 AW-A axial spherical plain bearing is specially designed for applications requiring high precision and reliability in the transmission of axial forces. This bearing has an inner diameter of 70 mm and an outer diameter of 160 mm, with a total width of 50 mm. Width B is 40 mm, width C is 36 mm and width T is 50 mm. The bearing is made of a combination of steel and PTFE fabric, which guarantees high wear resistance and low friction, thereby extending its service life.

The bearing is maintenance-free, which means that it does not require additional lubrication during operation, and is designed without a lubrication hole. This aspect is important for applications where maintenance is complicated or undesirable. The bearing is seal-free, which can be an advantage in applications where protection against contamination is not required.

The operating temperature range of the bearing is from -50 °C to +150 °C, which allows it to be used in a wide range of industrial applications, including those where extreme temperature conditions are present. The radius r1 is 1 mm and the hole profile is cylindrical, which facilitates assembly and integration into various mechanical systems. The bearing has a design angle of 6°, which allows a certain degree of tilting and adaptation to axial movements.

With a total weight of 5.68 kg, this bearing is robust and durable, suitable for applications where high demands are placed on mechanical strength and reliability. The manufacturer is the renowned company INA, which is known for its top quality and innovations in the field of bearings. The manufacturer's product number is 006651895-0000, making it easier to identify and order this component.
