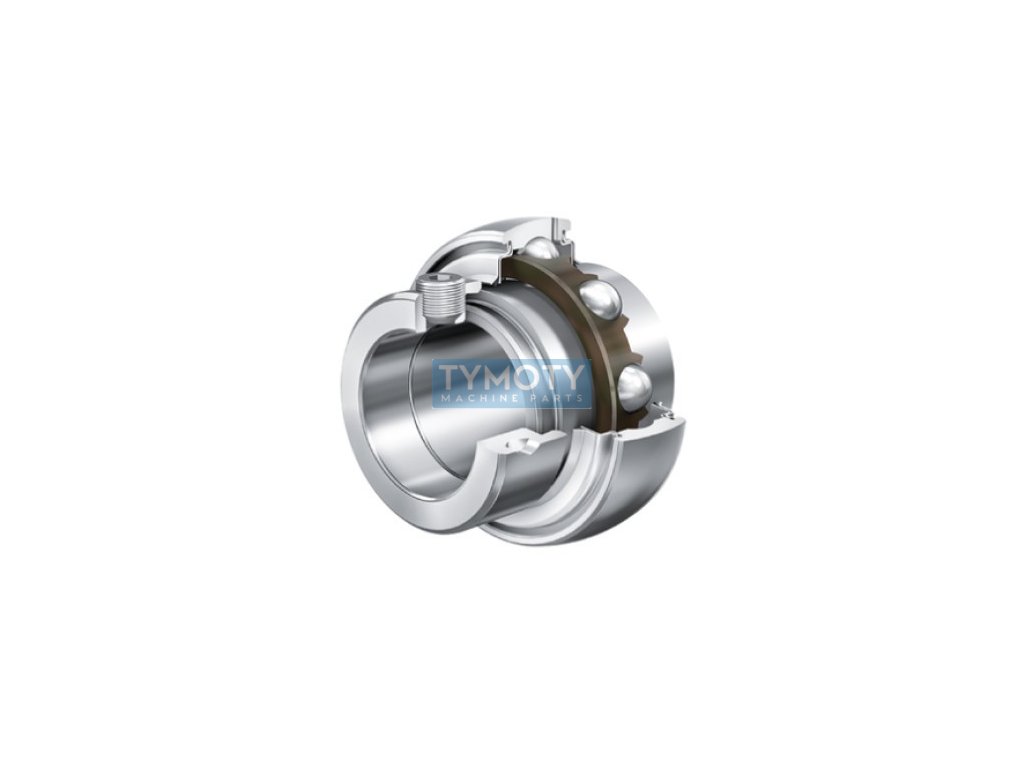

INA GE 40-XL-KRR-B bearing

Product detailed description

INA GE 40-XL-KRR-B is a clamping bearing with a design designed for efficient radial load transfer. This bearing has an inner diameter of 40 mm, an outer diameter of 80 mm and a width of 56.5 mm. It is made of standard steel for rolling bearings, which guarantees its high resistance and long service life even in difficult operating conditions.

The outer ring of the bearing has a spherical shape, which allows for misalignment compensation and ensures optimal functionality in various applications. The inner ring is widened on both sides, which improves stability and promotes better load distribution. The bearing is equipped with a double-sided rubber lip seal, which effectively protects against dust and moisture, thereby extending the service life of the bearing.

The bearing is designed for operation in a temperature range from -20 °C to +120 °C, which makes it suitable for a wide range of industrial applications. The bearing is secured with an eccentric mounting ring, which allows for easy and quick installation.

The running accuracy is in accordance with the accuracy class P0/PN or ABEC 1, which guarantees reliable operation at normal speeds. The bearing allows for relubrication, which is practical for maintenance and extending its service life. The total weight of the bearing is 0.73 kg, which contributes to its robustness and stability in applications where high loads need to be transmitted.

This component is ideal for use in various industrial sectors where high reliability and resistance to mechanical wear are required.
