INA GE 10-PB articulated bearing steel/bronze articulated bearing steel/bronze

Product detailed description

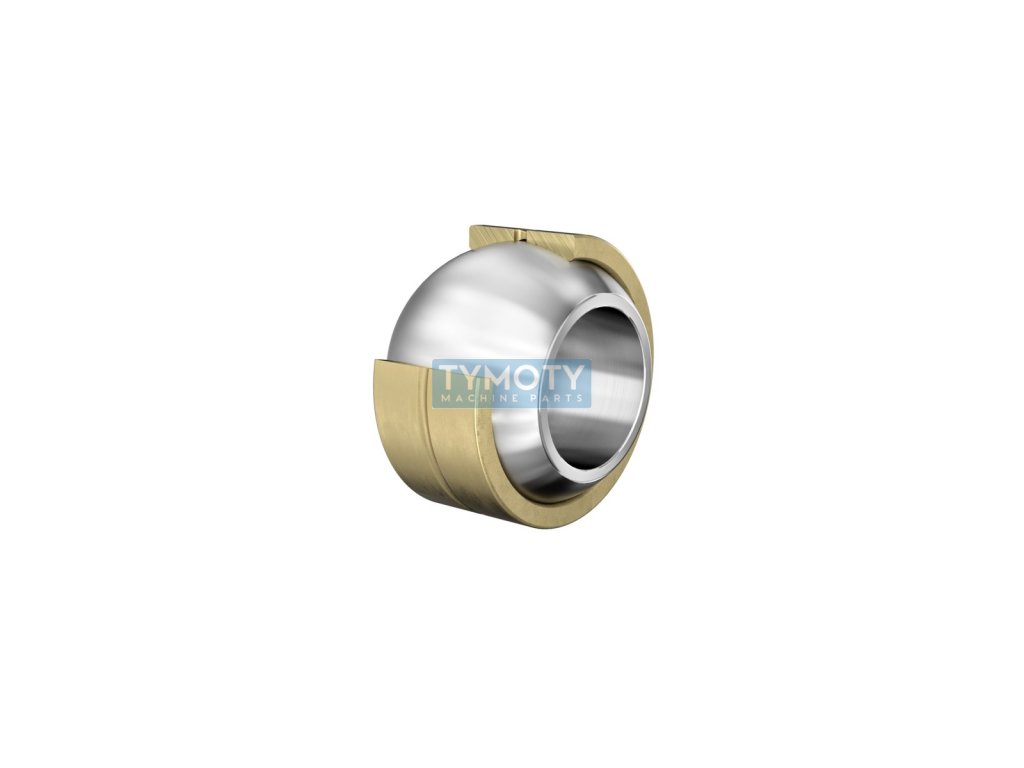

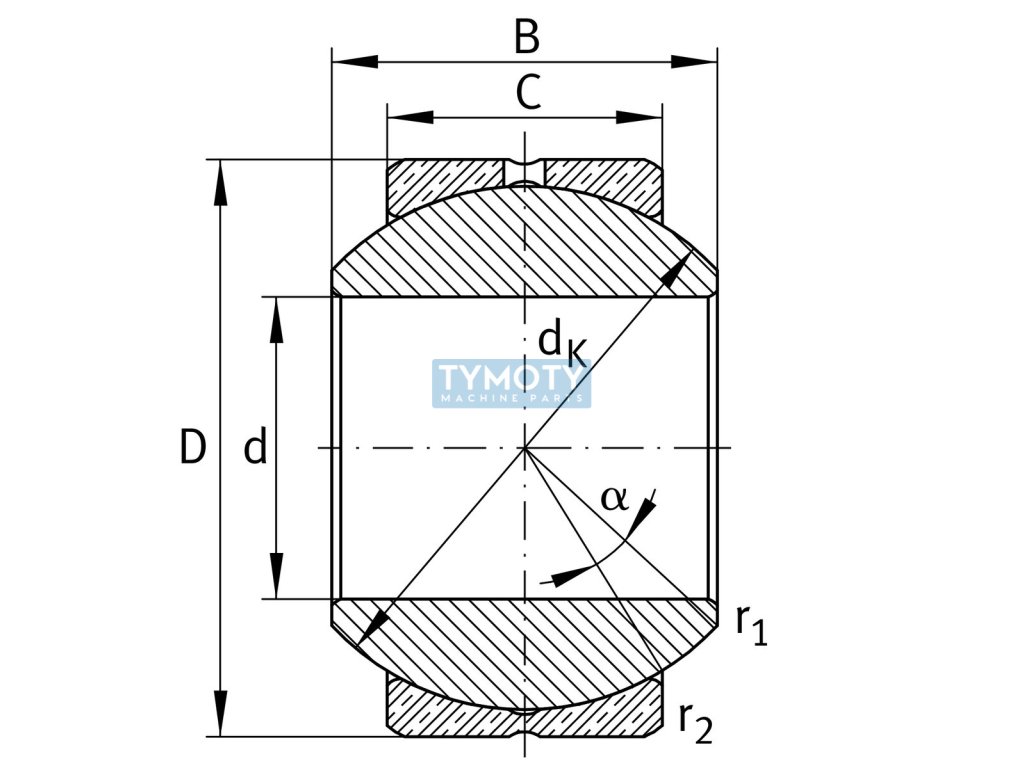

INA GE 10-PB is a radial spherical plain bearing manufactured by the renowned manufacturer INA, which is characterized by high quality and reliability. This bearing is designed with an inner diameter (d) of 10 mm, an outer diameter (D) of 22 mm and a width (B) of 14 mm. The width C, which is important for assembly purposes, is 10.5 mm.

The bearing is made of a combination of steel and bronze, which guarantees optimal wear resistance and a long service life even under difficult operating conditions. The steel provides strength and stability, while the bronze layer reduces friction and improves sliding properties.

This component is designed without seals, which means that it is suitable for applications where protection from external influences is not required, or where external lubrication is provided. Its operating temperature range is from -60 °C to +250 °C, which allows it to be used in a wide range of temperature conditions, including extremely low and high temperatures.

The hole profile is cylindrical, which facilitates assembly and disassembly in various applications. The GE 10-PB bearing is ideal for use in mechanisms where it is necessary to transmit radial loads and allow angular movement, such as hydraulic cylinders, construction machinery or agricultural equipment.

The manufacturer's number 006652468-0000 serves to accurately identify this particular model in the manufacturer's catalog. Overall, the INA GE 10-PB is a reliable choice for applications requiring high precision and resistance to harsh conditions.
