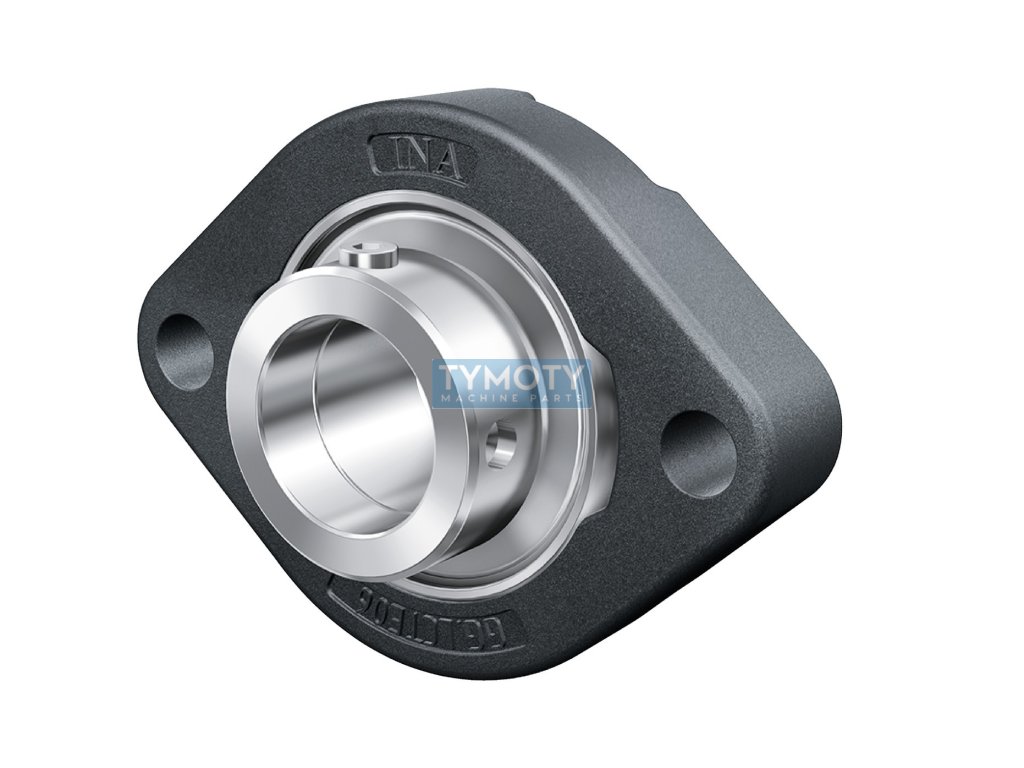

INA FLCTE 30-XL bearing unit

Product detailed description

The INA FLCTE 30-XL bearing unit is designed as an oval flange unit, which is suitable for various industrial applications. This unit is equipped with a cylindrical hole profile with an inner diameter of 30 mm, an outer diameter of 112.5 mm and a width of 38.1 mm. It is made of high-quality gray cast iron, which provides high strength and resistance to mechanical stress, while the bearing itself is made of steel intended for rolling bearings, which guarantees a long service life and reliability.

The bearing unit is equipped with a single seal, which provides protection against dirt and moisture, thereby extending the service life of the bearing. The operating temperature range of this unit is from -20 °C to +120 °C, which allows it to be used in various climatic conditions. The bearing unit is mounted using an eccentric mounting ring, which simplifies assembly and disassembly.

The unit has two mounting holes that allow it to be firmly attached to the appropriate structure. The total weight of the bearing unit is 0.76 kg, which contributes to its easy handling and installation. The surface finish is black, which provides an aesthetic appearance and additional protection against corrosion.

The INA FLCTE 30-XL bearing unit is a standard solution for applications where high reliability and easy maintenance are required. It is ideal for use in various industrial sectors where it is necessary to ensure effective force transmission and minimize friction.
