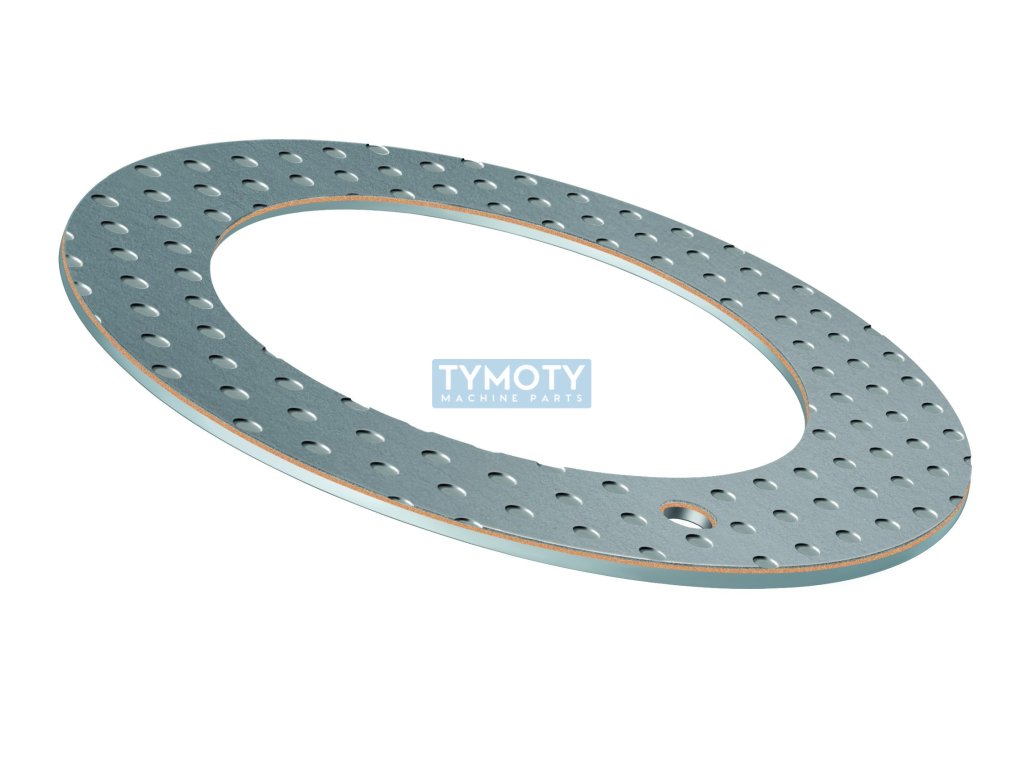

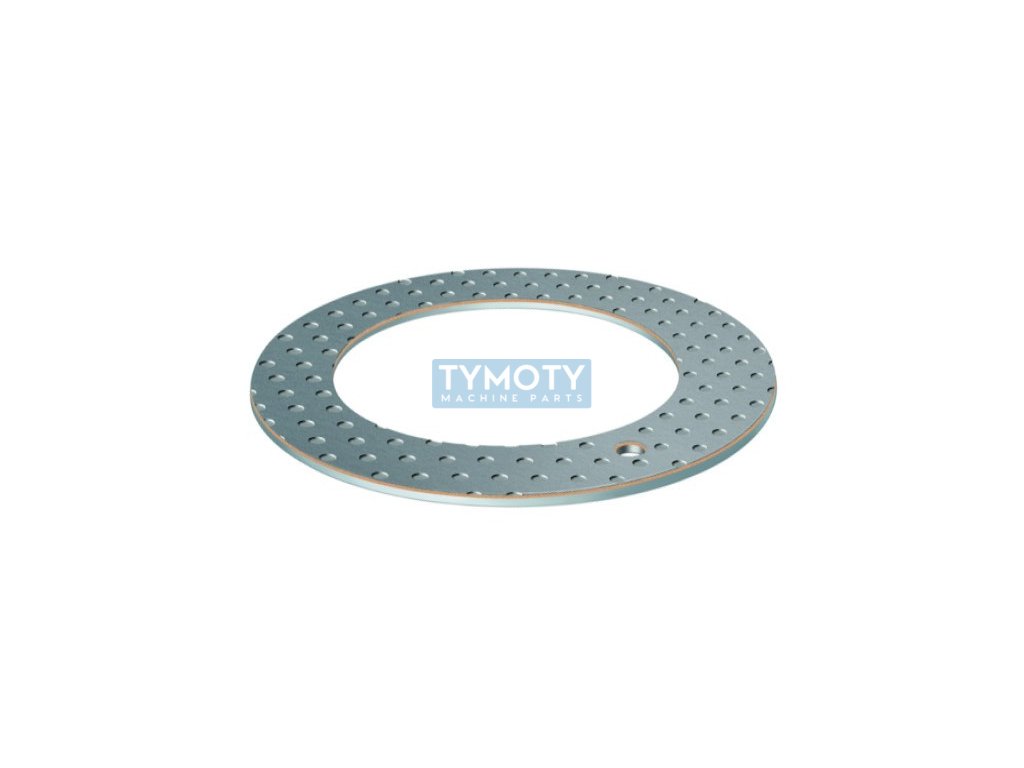

INA EGW 26-E50-Y axial sliding ring, steel-POM

Product detailed description

INA EGW 26-E50-Y is an axial sliding ring designed for applications requiring a reliable and efficient solution for transmitting axial forces. This component is made of a combination of steel and polyoxymethylene (POM), which guarantees high wear resistance and low friction. The steel provides strength and stability, while the POM ensures excellent sliding properties, minimizing the need for maintenance and increasing the product's service life.

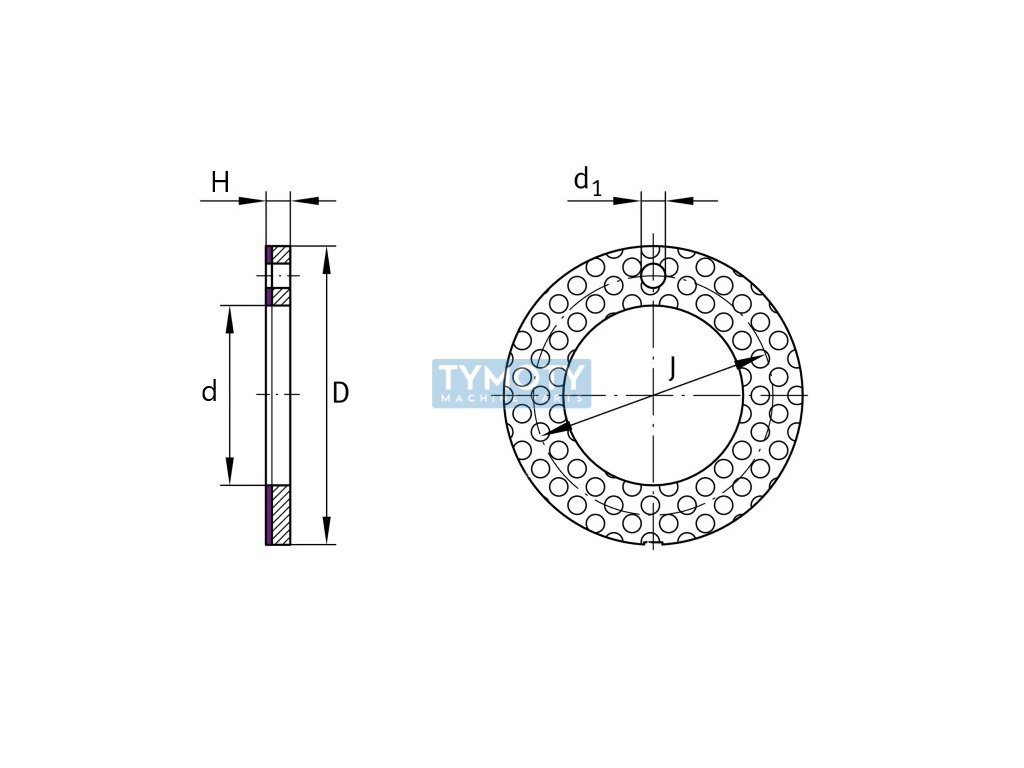

The ring has an inner diameter of 26 mm, an outer diameter of 44 mm and a width of 1.5 mm. These dimensions are optimized for use in various industrial applications where axial loads need to be transmitted while maintaining minimal friction. Due to its dimensions and material properties, this sliding ring is suitable for applications with limited space where compactness and efficiency are important.

The operating temperature range of the ring is from -40 °C to +110 °C, which allows its use in various climatic conditions and environments. The ring is designed with minimal maintenance requirements, but can also be used in applications where relubrication is required, which increases its flexibility and adaptability to various operating conditions.

Weighing only 0.008 kg, this axial sliding ring is lightweight, which contributes to reducing the overall weight of the equipment in which it is used. The product is lead-free, which complies with current environmental standards and regulations. The manufacturer INA, known for its quality and reliability, guarantees that this ring will meet the expectations of even the most demanding applications.
