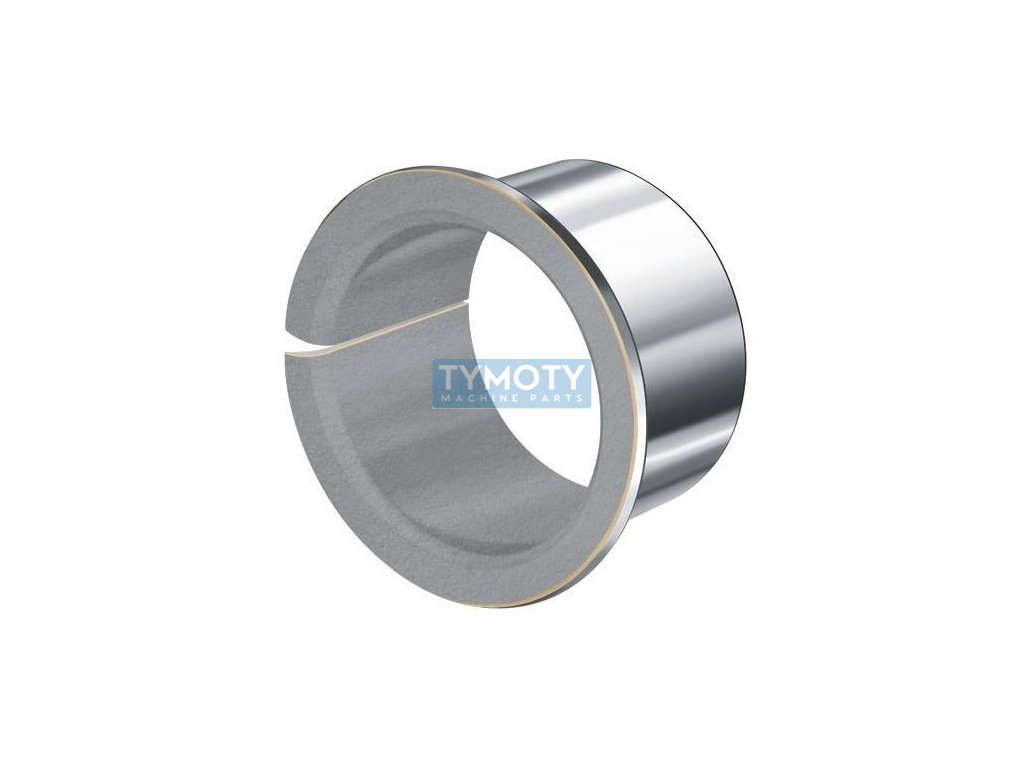

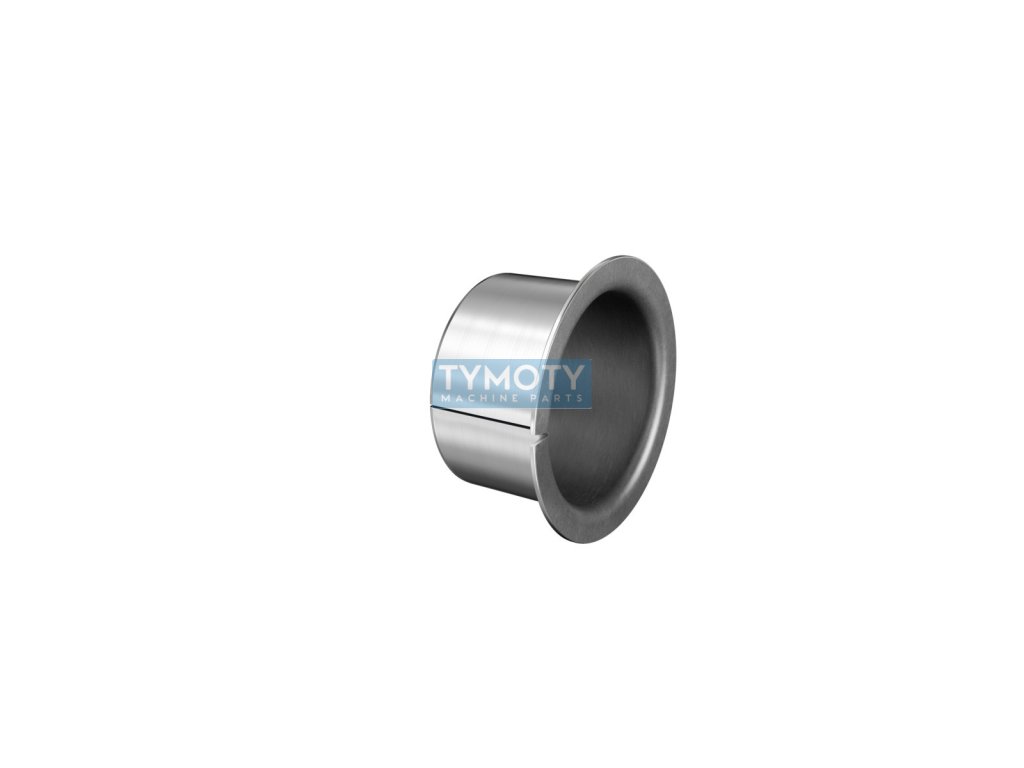

INA EGF 18220-E40-Y Flanged Sliding Bushing

Product detailed description

INA EGF 18220-E40-Y is a flanged plain bearing designed for applications requiring high precision and reliability in demanding conditions. This bearing is made of a composite material PTFE on a steel base, which guarantees excellent sliding properties and wear resistance. The inner diameter of the bearing is 18 mm, the outer diameter is 20 mm and the flange diameter is 26 mm. The overall width of the bearing is 22 mm, while the flange width is 1 mm.

The bearing is designed to operate in an extreme temperature range from -200 °C to +250 °C, which allows it to be used in a wide range of industrial applications. Thanks to the lead-free material composition, this bearing is environmentally friendly and meets current environmental standards. Its design allows maintenance-free operation, which is ideal for dry-running applications where the use of lubricants is not possible or appropriate.

The bushing is coded EGF18220-E40-Y and is manufactured by the renowned brand INA, part of the Schaeffler Group. Weighing only 0.011 kg, this bushing is lightweight, which contributes to reducing the overall weight of the structure into which it is integrated. This feature is particularly important in applications where weight is a critical factor. Overall, the INA EGF 18220-E40-Y is an ideal solution for applications where high performance and long service life are required without the need for maintenance.
