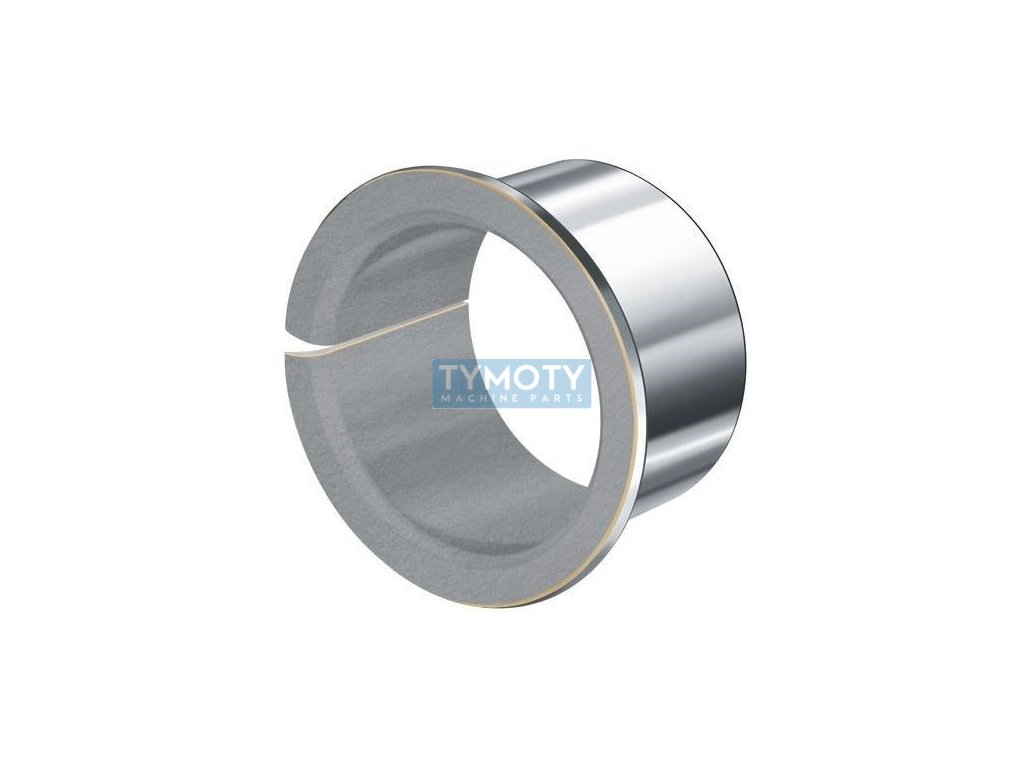

INA EGF 16170-E40-Y Flanged Sliding Bushing

Product detailed description

The INA EGF 16170-E40-Y flanged plain bearing is a high-quality component designed for applications requiring reliable sliding properties and a long service life. This type of bearing is designed with a flange, which allows for easy mounting and ensures stability in the structure.

The bearing has an inner diameter of 16 mm and an outer diameter of 18 mm, while the flange diameter is 24 mm. The width of the bearing is 17 mm, while the width of the flange is 1 mm. These dimensions are optimized for a wide range of applications where precise and tight mounting is required.

The material composition of the bearing combines steel with a PTFE (polytetrafluoroethylene) composite, which provides excellent sliding properties and wear resistance. PTFE is known for its low friction value and ability to operate without the need for lubrication, which is ideal for applications where maintenance is limited.

The bushing is capable of operating in extreme temperature conditions, with a minimum operating temperature of -200 °C and a maximum temperature of +250 °C. This wide temperature tolerance allows for use in a variety of industries, including the automotive, aerospace and mechanical engineering industries.

The manufacturer INA is known for its precision and quality, which guarantees reliability and a long service life of the component. The manufacturer's number for this product is 070412219-0000, which allows for easy identification and ordering.

This flanged plain bushing is ideal for applications where high precision and reliability are required in harsh conditions.
