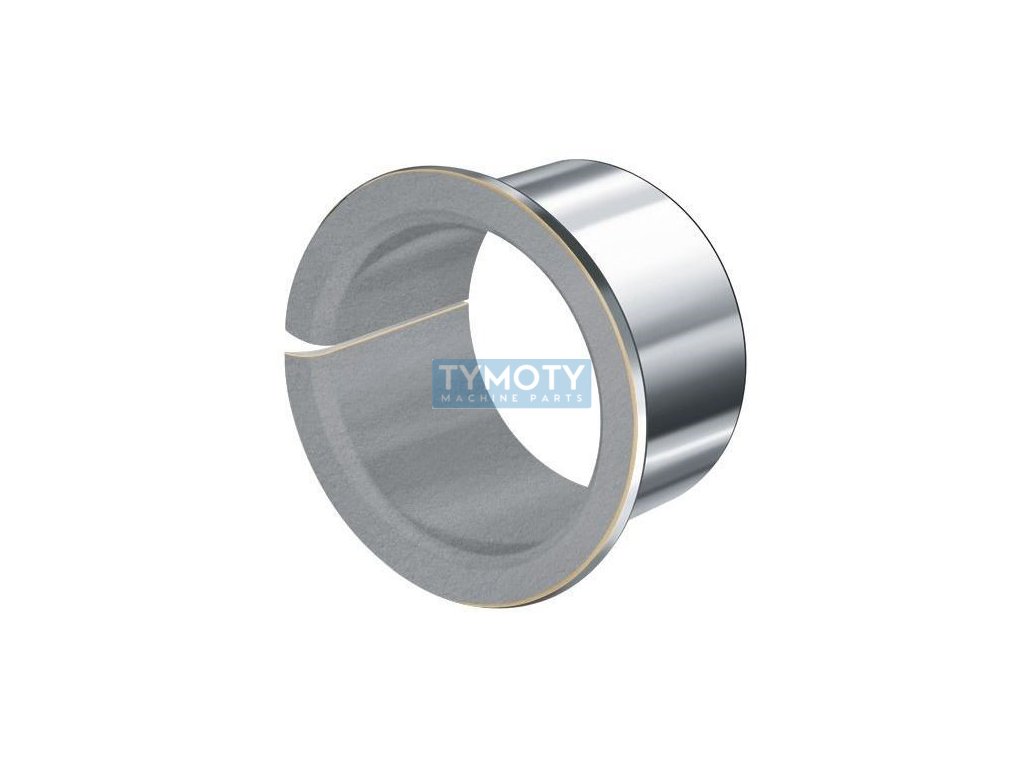

INA EGF 16120-E40-Y Flanged Sliding Bushing
Code: 358812
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > slippery > flanged bushings > steel - PTFE/Pb composite > d = 16 mm |
|---|---|
| Weight: | 0.006 kg |
| EAN: | 4012802756036 |
| Diameter D (mm): | 18, 16 |
| Diameter d1 (mm): | 24 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | INA |
| Material: | steel-PTFE |
| Maximum temperature °C: | +250 |
| Minimum temperature °C: | -200 |
| Width B (mm): | 12 |
| Width B1 (mm): | 1 |
| Číslo výrobce: | 070411875-0000 |
| Značení: | EGF16120-E40-Y |
| Typ: | přírubové kluzné pouzdro s kompozitem PTFE |
