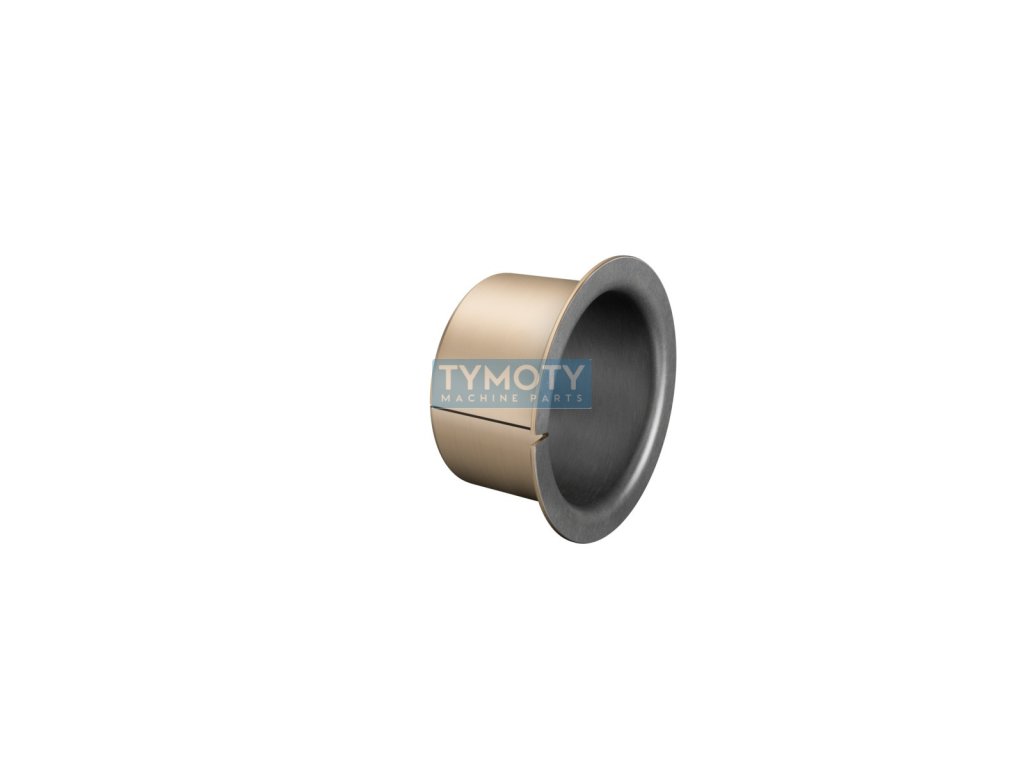

INA EGF 10170-E40-BY Flanged Sliding Bushing, Bronze-PTFE

Product detailed description

The INA EGF 10170-E40-BY flanged plain bearing is a high-quality component designed for applications requiring reliable sliding properties without the need for maintenance. This bearing is made of a composite material consisting of bronze and PTFE (polytetrafluoroethylene), which ensures excellent sliding properties and wear resistance. The inner diameter of the bearing is 10 mm, the outer diameter is 12 mm and the flange diameter is 18 mm. The overall width of the bearing is 17 mm, while the flange width is 1 mm.

This component is designed for operation in a wide temperature range from -200 °C to +280 °C, which makes it suitable for use in extreme conditions. Thanks to the bronze-PTFE material combination, the bearing is able to operate in dry-running applications, eliminating the need for additional lubrication and maintenance. High resistance to temperature changes and wear guarantees a long service life and reliability in various industrial applications.

The INA EGF 10170-E40-BY flanged plain bearing is ideal for use in mechanical engineering, the automotive industry and other areas where high demands are placed on the accuracy and durability of sliding joints. Its low weight, only 0.005 kg, contributes to the overall efficiency and ease of installation in various designs. This product is manufactured by the renowned INA company, which is known for its quality and innovations in the field of plain bearings.
