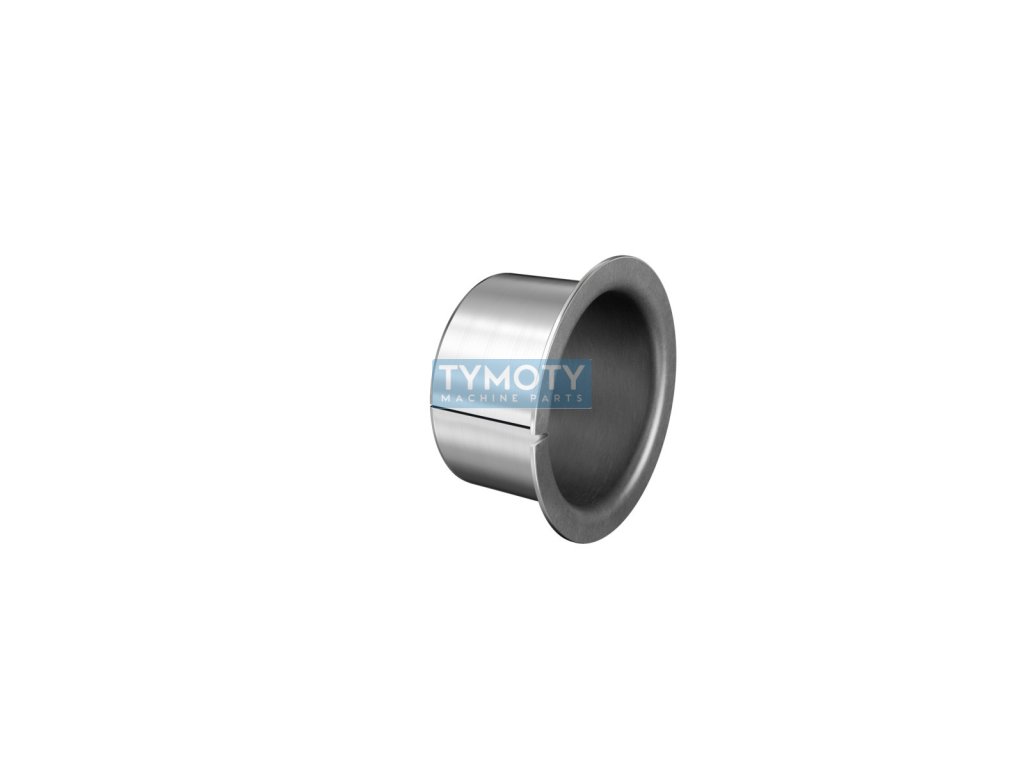

INA EGF 10120-E40-Y Flanged Sliding Bushing

Product detailed description

INA EGF 10120-E40-Y is a flanged plain bearing designed for applications requiring reliable and maintenance-free sliding solutions. This component is made of a composite material based on steel and PTFE (polytetrafluoroethylene), which ensures excellent sliding properties and wear resistance. PTFE is known for its low coefficients of friction and chemical inertness, which allows the bearing to operate effectively over a wide temperature range from -200 °C to +250 °C, with a maximum temperature range of up to +280 °C.

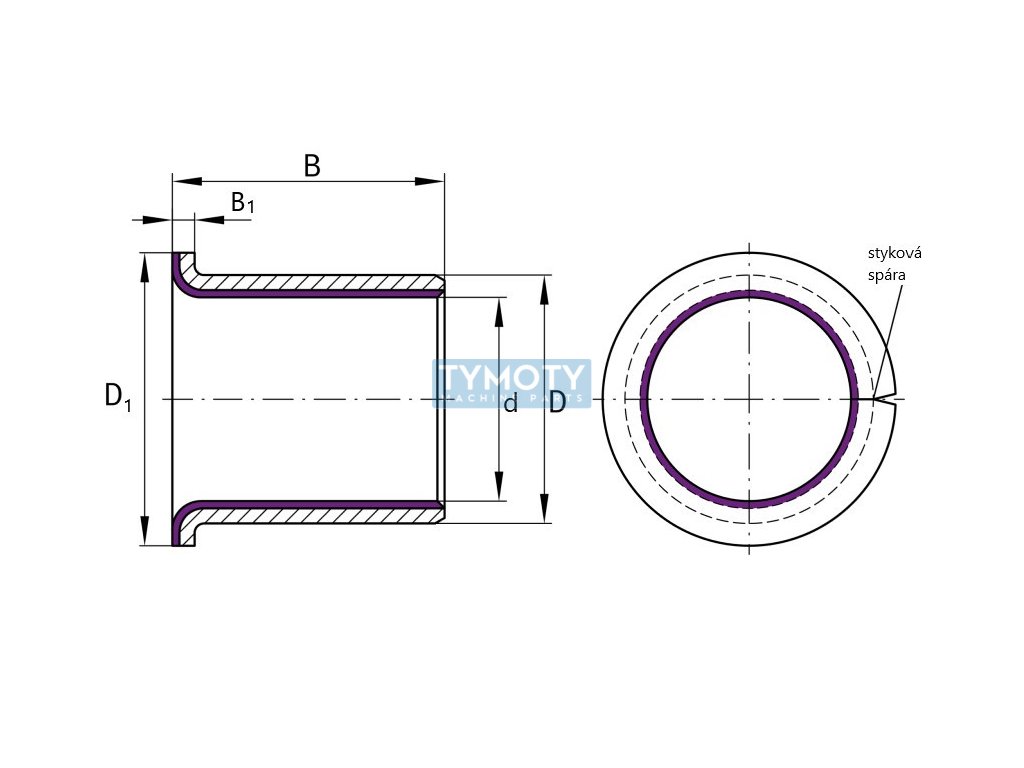

The bearing has an inner diameter of 10 mm, an outer diameter of 12 mm and a flange diameter of 18 mm. The overall width of the bearing is 12 mm, while the flange width is 1 mm. These dimensions are optimized for easy integration into various mechanical systems where smooth and quiet operation is required without the need for additional lubrication.

Due to its design, the housing is suitable for dry-running applications, eliminating the need for regular maintenance and lubrication. This is particularly advantageous in environments where maintenance is difficult or impractical. The use of lead-free material in the construction ensures environmental friendliness and compliance with modern environmental standards.

This product is ideal for use in various industrial sectors, including the automotive, mechanical and electrical industries, where reliable and long-term performance of sliding joints is required. Weighing only 0.004 kg, the housing is lightweight, which contributes to reducing the overall weight of the structure into which it is integrated.
