INA EGF 10070-E40-Y Flanged Sliding Bushing

Product detailed description

INA EGF 10070-E40-Y is a flanged plain bearing designed for applications that require reliable and maintenance-free sliding motion. This component is made of a steel-PTFE composite material, which ensures excellent sliding properties and wear resistance. PTFE (polytetrafluoroethylene) is known for its low friction value and ability to operate without the need for additional lubrication, which reduces maintenance requirements and extends the service life of the bearing.

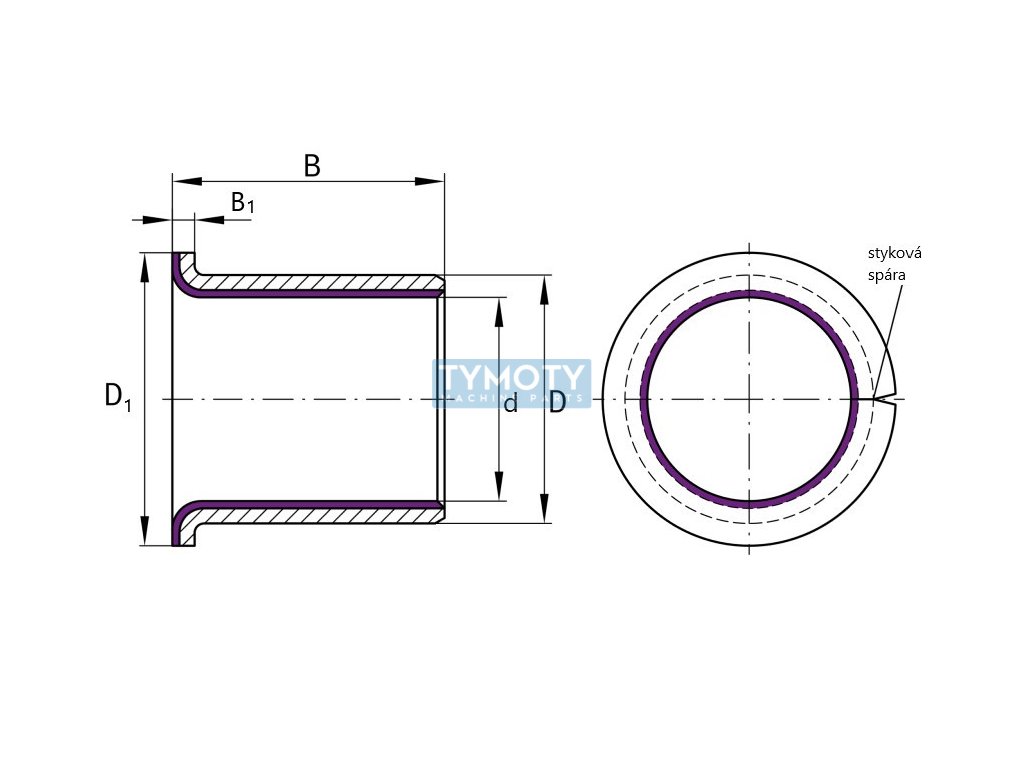

The bearing has an inner diameter of 10 mm, an outer diameter of 12 mm and a flange diameter of 18 mm. The overall width of the bearing is 7 mm, while the flange has a width of 1 mm. These dimensions allow for precise assembly in various mechanical assemblies where reliable sliding motion is required.

Thanks to the use of lead-free steel, the bearing is environmentally friendly and suitable for a wide range of industrial applications. The temperature range in which the bushing can operate effectively is from -200 °C to +250 °C, which allows it to be used in extreme conditions, including very low and high temperatures.

The total weight of the bushing is only 0.003 kg, which contributes to reducing the total weight of the assembly in which the bushing is used. Thanks to its design and material properties, the bushing is ideal for dry-running applications where minimizing friction and wear without the need for additional lubrication is important.

The manufacturer INA, known for its quality and reliability, guarantees that the EGF 10070-E40-Y is suitable for demanding industrial applications where high precision and long component life are required.
