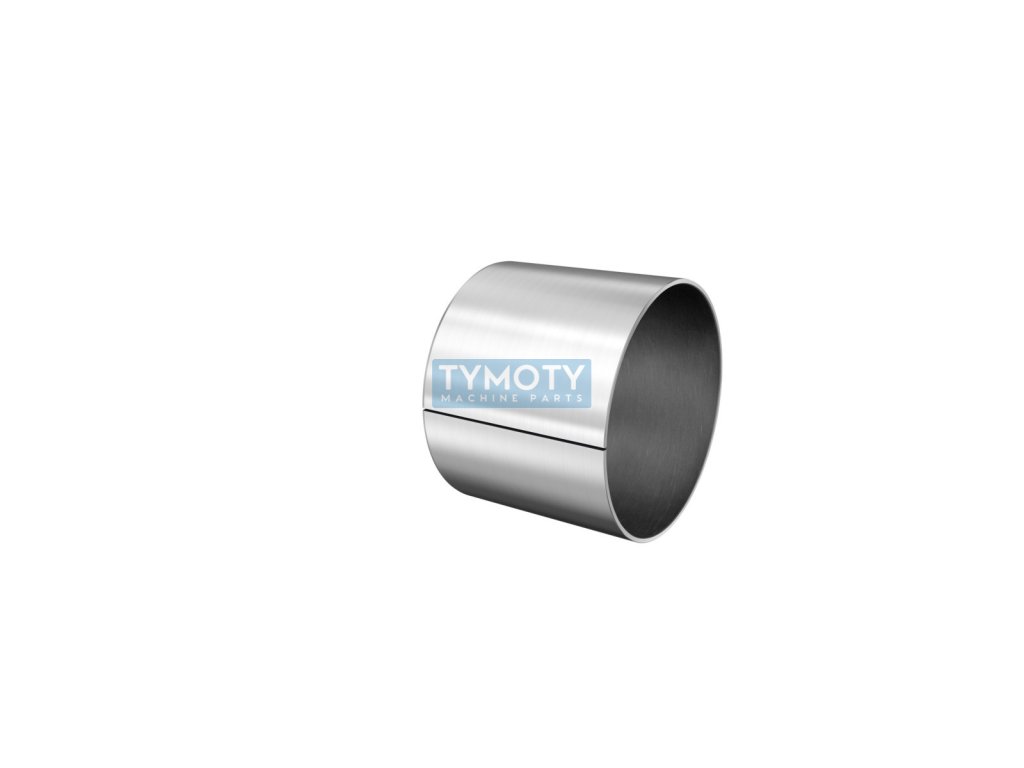

INA EGB 2530-E40-Z sliding sleeve, steel-PTFE

Product detailed description

The INA EGB 2530-E40-Z is a plain bearing designed for applications requiring high reliability and wear resistance. This bearing is made of a combination of steel and PTFE (polytetrafluoroethylene), which gives it excellent sliding properties and a low coefficient of friction. The steel base ensures strength and stability, while the PTFE layer reduces friction and wear, thereby extending the life of the component.

The technical parameters of this bearing include an inner diameter (d) of 25 mm, an outer diameter (D) of 28 mm and a width (B) of 30 mm. The wall thickness of the bearing is 0.6 mm, which allows it to be used in applications with limited space, while still providing sufficient mechanical resistance.

The INA EGB 2530-E40-Z plain bearing is capable of operating in a wide range of operating temperatures, from -200 °C to +280 °C. This feature makes it ideal for use in extreme conditions where resistance to high temperatures or frost is required.

This component is ideal for various industrial applications, including mechanical engineering, the automotive industry and other areas where smooth and quiet operation of moving parts is required. Thanks to the INA brand, which is known for its quality and reliability, the EGB 2530-E40-Z is a reliable choice for demanding technical solutions.
