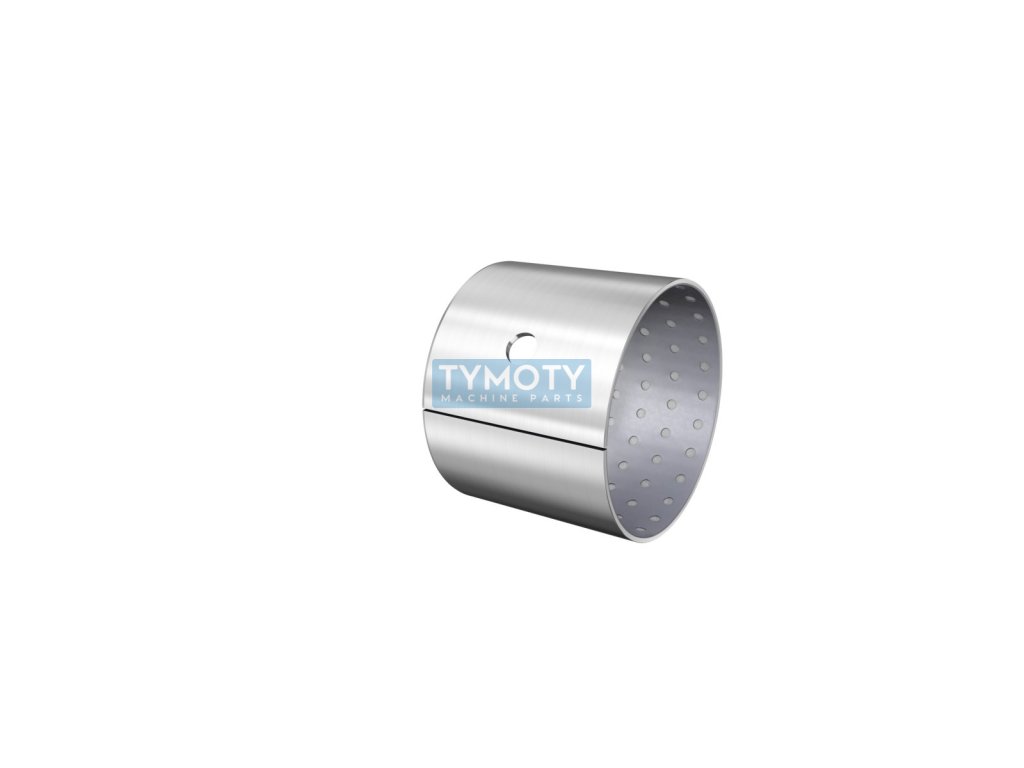

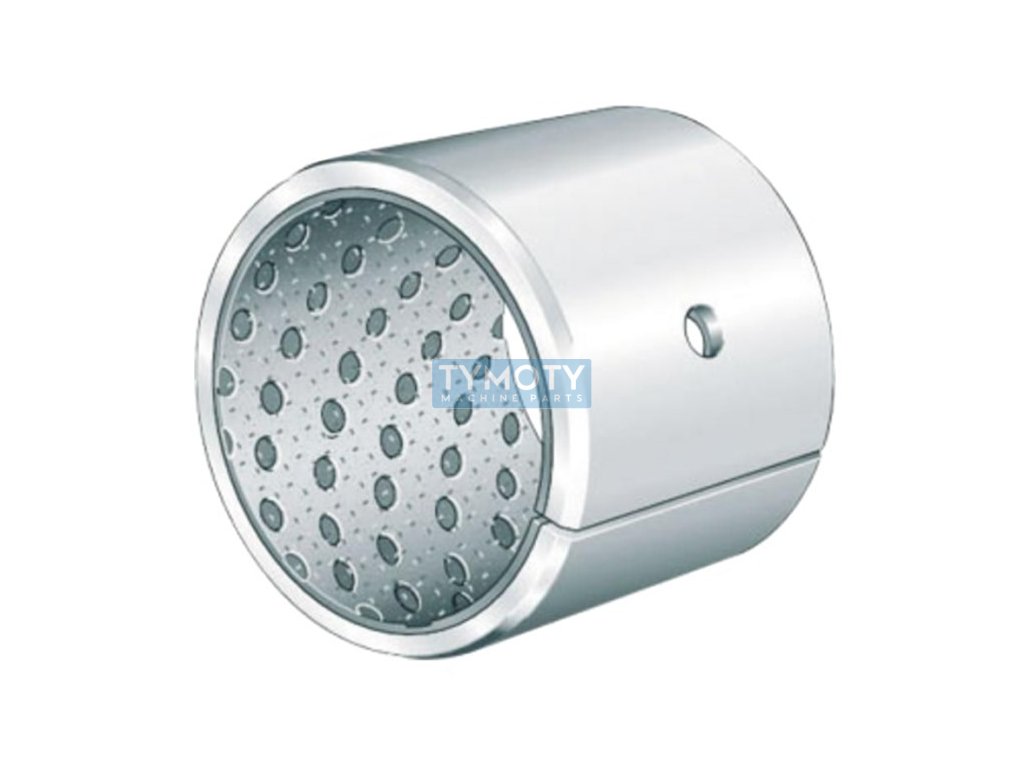

INA EGB 2520-E50-Y sliding sleeve, steel-POM

Product detailed description

INA EGB 2520-E50-Y is a plain bearing made of a combination of steel and polyoxymethylene (POM), an engineering thermoplastic known for its high strength, low friction and excellent dimensional stability. This bearing is designed for use in applications where there are minimal maintenance requirements, but it also allows for relubrication, which extends its service life and increases reliability in demanding conditions.

The design dimensions of the bearing are: inner diameter (d) 25 mm, outer diameter (D) 28 mm and width (B) 20 mm. These dimensions are optimized for use in various mechanical assemblies where smooth and reliable movement of rotating or sliding parts is required.

The material composition of the bearing consists of a lead-free steel base, which guarantees high strength and wear resistance, and a POM surface layer, which provides a low coefficient of friction and good sliding properties. This combination of materials allows the housing to be used in a wide temperature range from -40 °C to +110 °C, while the POM material itself is able to withstand temperatures from -200 °C to +280 °C.

The INA EGB 2520-E50-Y housing is suitable for various industrial applications where properties such as low weight (0.013 kg), high resistance to chemicals and the ability to work in environments with high humidity or the presence of dirt are important. The manufacturer INA, belonging to the Schaeffler Group, is known for its quality and innovations in the field of bearings and plain bearings, which guarantees the reliability and long service life of this component.
