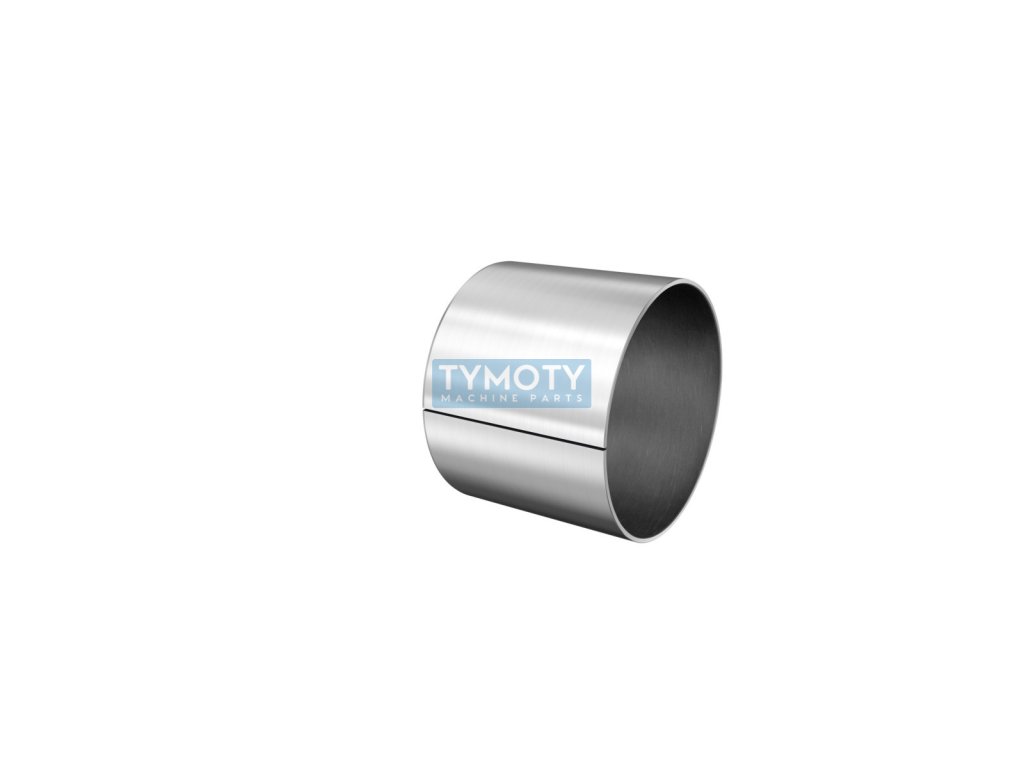

INA EGB 2430-E40-Z sliding sleeve, steel-PTFE

Product detailed description

The INA EGB 2430-E40-Z plain bearing is a high-quality component designed for applications requiring reliable sliding properties under various temperature conditions. This bearing is made of a combination of steel and PTFE (polytetrafluoroethylene), which ensures excellent wear resistance and a low coefficient of friction. The steel provides strength and stability, while the PTFE layer ensures a smooth sliding surface, minimizing the need for lubrication.

With an outer diameter of 27 mm and an inner diameter of 24 mm, this bearing is designed for precise seating in mechanical assemblies. The width of the bearing is 30 mm, which provides sufficient contact area for effective load distribution. The wall thickness of the sleeve is 0.6 mm, which is optimized for a combination of strength and flexibility.

This type of sliding sleeve is suitable for a wide range of operating temperatures, from -200 °C to +280 °C, which allows it to be used in extreme conditions such as cryogenic applications or high-temperature environments. Thanks to these properties, it is ideal for use in various industrial sectors, including the automotive, mechanical engineering and energy sectors.

The product is marked according to the EGB2430-E40-Z standard and is manufactured by the renowned INA company, which is known for its precision manufacturing and reliability of components. The manufacturer's number 070394865-0000 serves to accurately identify the product within the manufacturer's range. This component is designed to provide long service life and reliable performance in demanding operating conditions.
