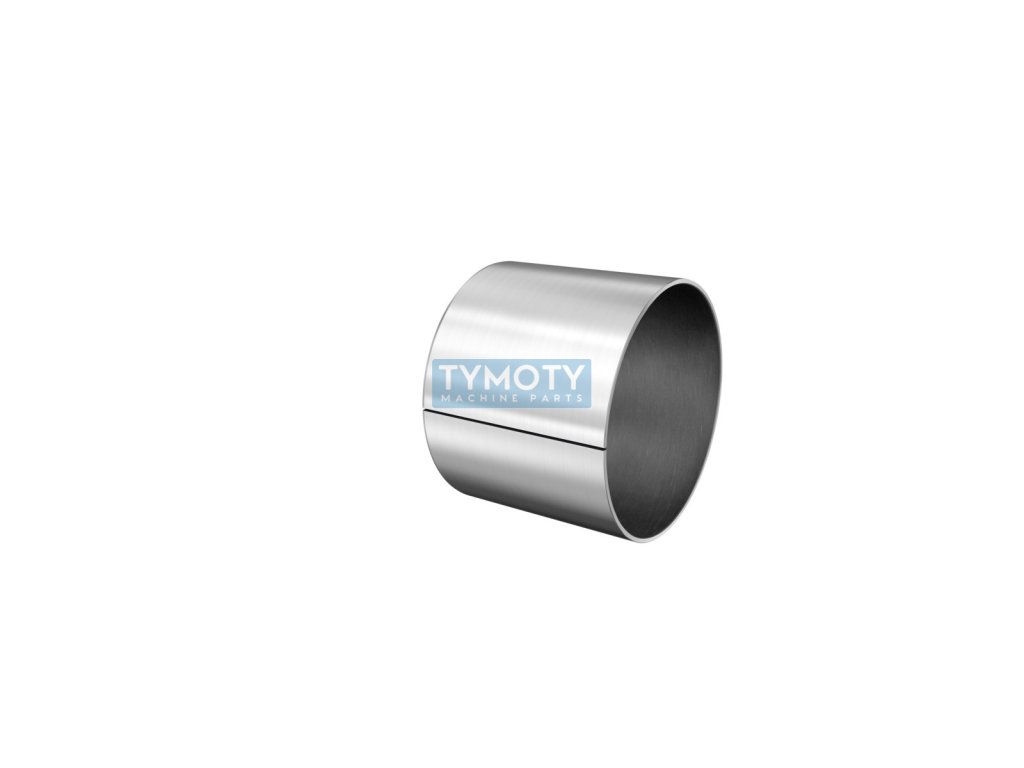

INA EGB 2010-E40-Z sliding sleeve, steel-PTFE

Product detailed description

INA EGB 2010-E40-Z is a plain bearing made of a combination of steel and PTFE (polytetrafluoroethylene), which guarantees excellent sliding properties and high wear resistance. This component is designed for applications where low friction and long service life without the need for lubrication are required. The inner diameter of the bearing is 20 mm, the outer diameter is 23 mm and the width is 10 mm, which makes it suitable for a wide range of mechanical assemblies.

The bearing is designed to operate in extreme temperature conditions, with a minimum operating temperature of -200 °C and a maximum of +280 °C. This wide temperature tolerance allows it to be used in various industrial sectors, including the automotive, aerospace and energy industries.

The steel-PTFE material combination provides high strength and corrosion resistance, while the PTFE layer ensures a low coefficient of friction. The wall width of the housing is 0.6 mm, which contributes to its compactness and the possibility of integration into tight spaces.

The manufacturer INA is known for its precision and quality, which guarantees the reliability and long service life of this sliding bushing. The product is marked with the manufacturer's number 070393192-0000, which makes it easy to identify and order. This component is ideal for applications where it is necessary to minimize maintenance and maximize the efficiency of the movement of mechanical parts.
