INA EGB 1815-E50-Y sliding sleeve, steel-POM

Product detailed description

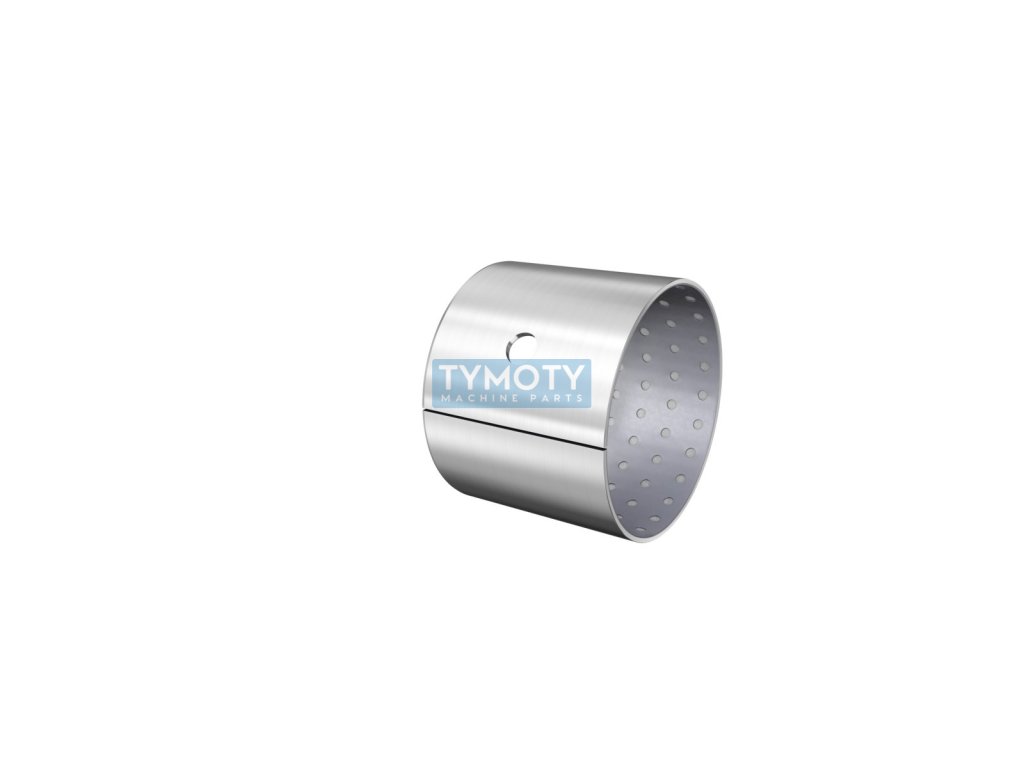

INA EGB 1815-E50-Y is a plain bearing made of a combination of steel and polyoxymethylene (POM), which is designed for applications requiring minimal maintenance. This component is suitable for use in mechanisms where it is necessary to ensure smooth and quiet operation during the relative movement of two parts.

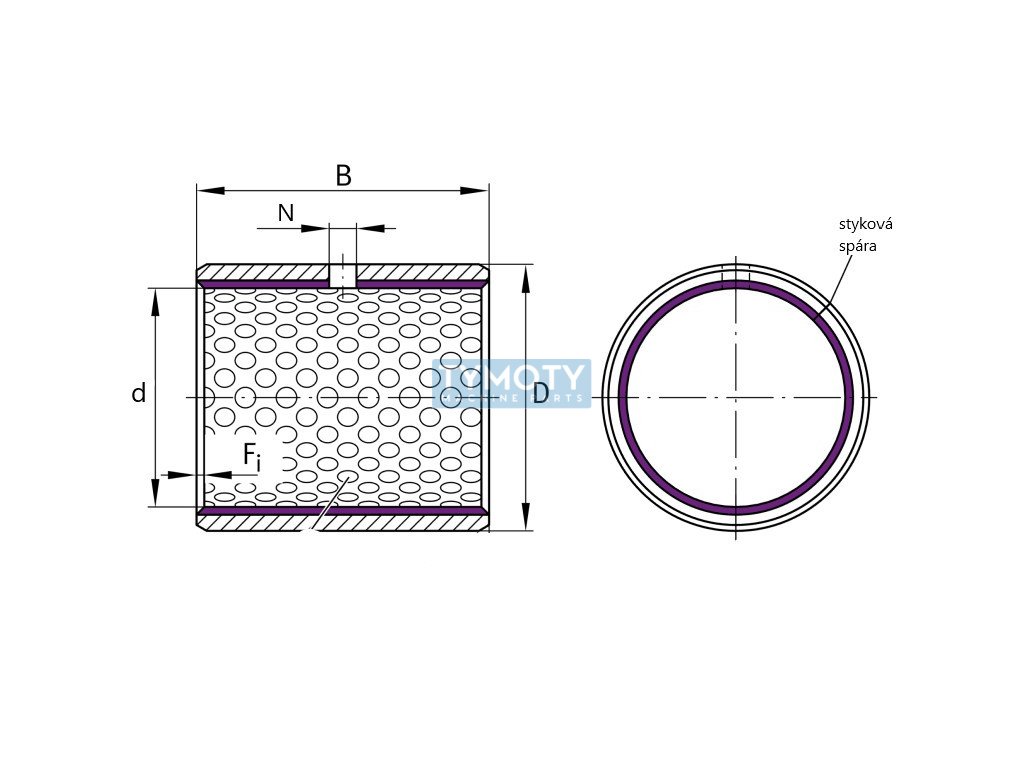

The bearing has an inner diameter of 18 mm, an outer diameter of 20 mm and a width of 15 mm. These dimensions allow its integration into various structures where precise assembly and reliable functionality are required. The material composition, steel with a POM surface layer, provides high wear resistance and a low coefficient of friction, which is ideal for applications with relubrication.

The operating temperature range of the bearing is from -40 °C to +110 °C, which allows its use in a wide range of industrial conditions. Although the material temperature range is wider, the bushing itself is optimized for the temperatures specified to ensure its long service life and reliability.

The weight of the bushing is 0.005 kg, which contributes to its easy handling and installation. The manufacturer, INA, guarantees high quality and manufacturing precision, which is important for applications where tolerances and reliability are critical. The bushing is marked with the manufacturer's number 070241902-0000 and is part of a range of plain bushings that are known for their efficiency and long service life.
