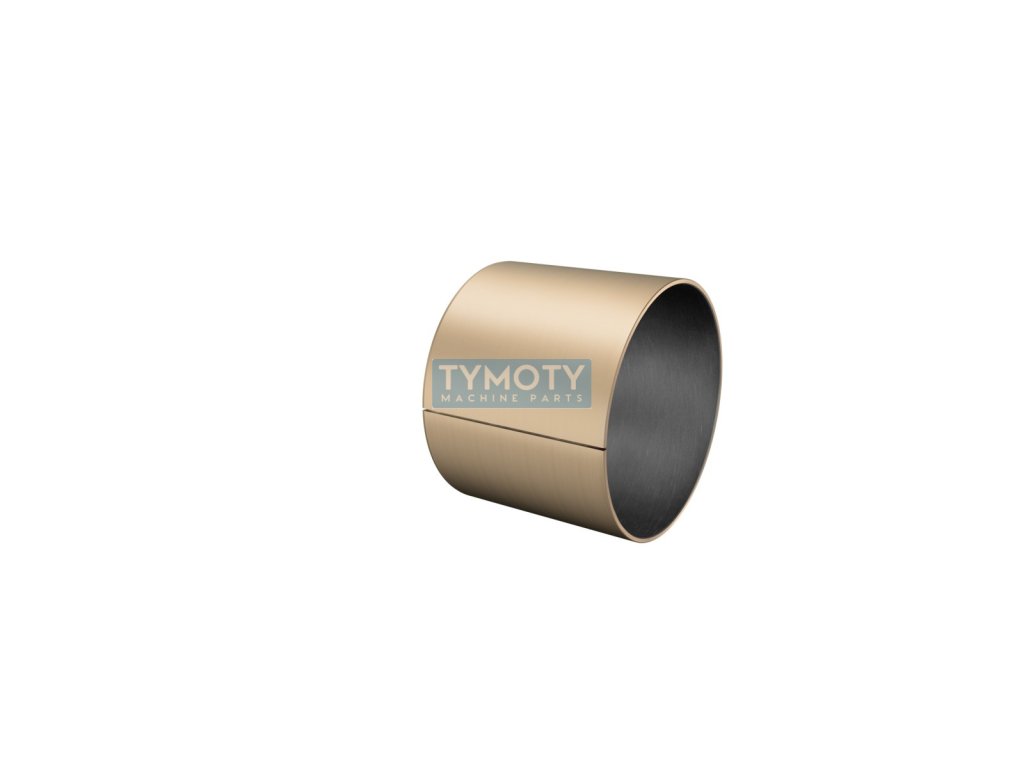

INA EGB 0812-E40-BY sliding sleeve, bronze-PTFE

Product detailed description

INA EGB 0812-E40-BY is a plain bearing made of bronze with a PTFE coating, designed for applications requiring maintenance-free operation. With an inner diameter of 8 mm, an outer diameter of 10 mm and a width of 12 mm, this component is ideal for precision mechanical assemblies where friction and wear must be minimized.

The bronze-PTFE material combination provides excellent sliding properties and wear resistance, while PTFE (polytetrafluoroethylene) is known for its low coefficient of friction and chemical resistance. The bronze base ensures high strength and stability, which is important for long-term reliability in demanding conditions.

This bearing is suitable for a wide temperature range from -200 °C to +280 °C, which allows it to be used in extreme temperature conditions, such as cryogenic applications or high-temperature environments. Thanks to its design, the bushing is able to operate without the need for additional lubrication, which reduces maintenance costs and increases operational efficiency.

Weighing only 0.003 kg, this component is lightweight, which contributes to reducing the overall weight of the mechanical systems where it is used. The manufacturer INA, known for its quality and reliability, ensures that the bushing meets high standards for industrial applications. The product designation EGB0812-E40-BY and the manufacturer number 070548382-0000 allow for easy identification and ordering.
