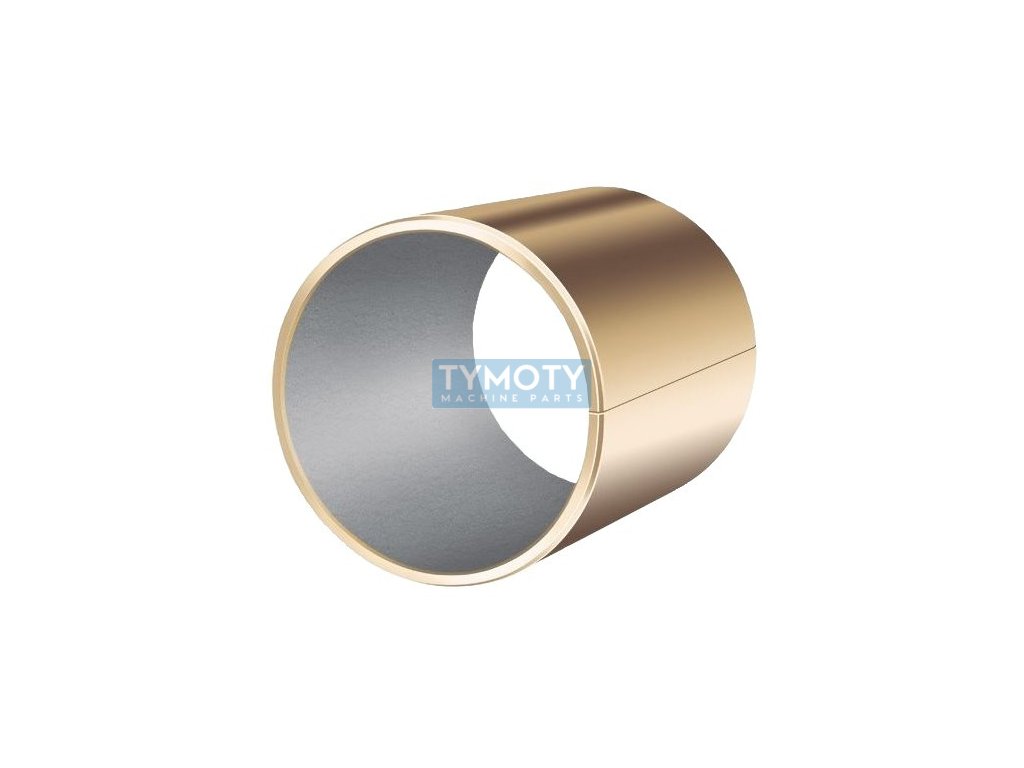

INA EGB 0406-E40-B-6-Y sliding bushing, bronze-PTFE

Product detailed description

INA EGB 0406-E40-B-6-Y is a plain bearing designed for applications requiring high reliability and minimal maintenance. This bearing is made of a combination of bronze and PTFE (polytetrafluoroethylene), which gives it excellent sliding properties and wear resistance. The bronze base ensures strength and stability, while the PTFE coating allows operation without the need for additional lubrication, which is ideal for dry-running applications.

The dimensions of the bearing are precisely defined: the inner diameter (d) is 4 mm, the outer diameter (D) is 6 mm and the width (B) is 6 mm. These dimensions allow for precise fitting into structures where compactness and accuracy are required.

The bearing is capable of operating in a wide temperature range, from -200 °C to +280 °C, which makes it suitable for various industrial applications, including those exposed to extreme temperature conditions. Its low weight, only 0.001 kg, contributes to reducing the overall weight of the structure in which it is used.

The manufacturer of this sliding bushing is the renowned brand INA, which is known for its quality and innovation in the field of bearings and sliding bushings. The product is marked with the code EGB0406-E40-B-6-Y and the production number is 071800905-0000, which makes it easy to identify and order.

This sliding bushing is ideal for applications where high reliability, long service life and minimal maintenance are required, while providing excellent sliding properties and wear resistance in harsh conditions.
