INA BK 3026 needle bearing with pressed housing

Product detailed description

INA BK 3026 is a pressed-in needle roller bearing designed for applications requiring a compact solution with high load capacity. This bearing is characterized by its closed-end design, which means that one side of the bearing is closed and protects the internal components from external influences.

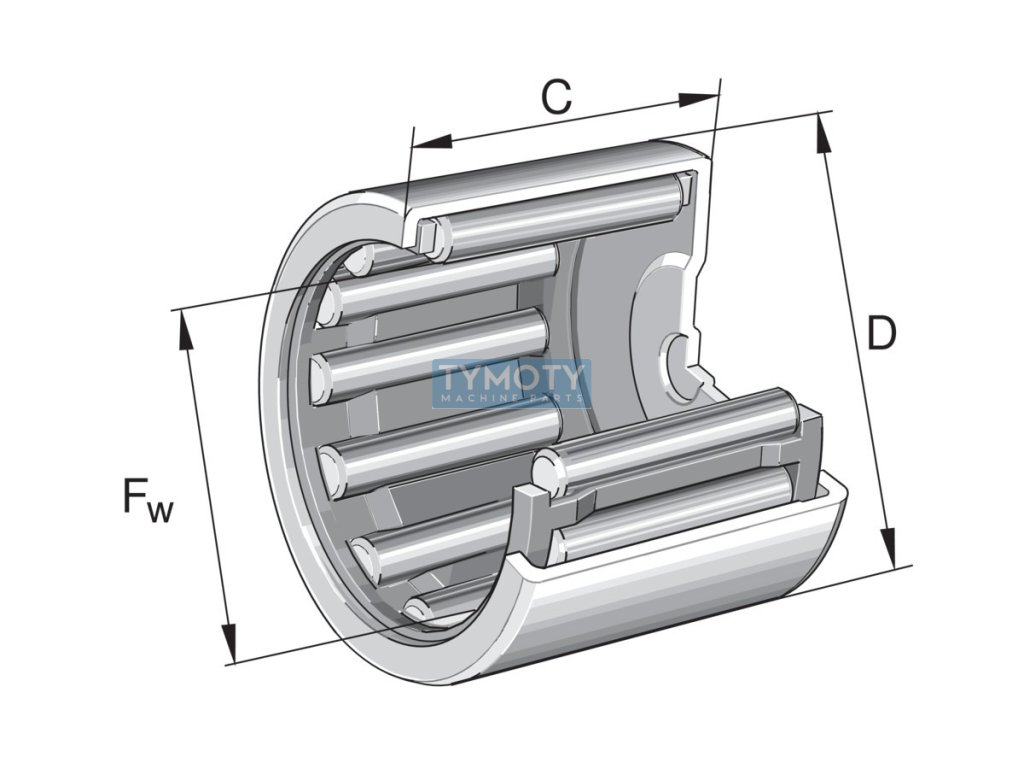

The bearing has an inner diameter of 30 mm, an outer diameter of 37 mm and a width of 36 mm. It is made of high-quality steel, which guarantees high resistance and long service life. The bearing is unsealed, which means that it is not protected from dust and dirt, and is therefore suitable for applications where these factors are not critical.

The bearing cage is made of pressed steel, which contributes to its strength and ability to withstand high loads. The bearing is single-row, which means that it contains one row of needle rollers, which are arranged to provide optimal support in a minimum size.

The operating temperature range of the bearing is from -30 °C to +140 °C, which allows it to be used in various industrial applications, including those where significant temperature changes occur. The bearing does not have a lubrication hole, which means that lubrication must be provided in another way, for example, through the ambient environment or external lubrication systems.

The weight of the bearing is 0.058 kg, which makes it light and suitable for applications where weight is a critical factor. The manufacturer of this bearing is the renowned company INA, which is known for its quality and reliability in the field of bearings. The BK3026 model is ideal for use in various industrial sectors where compact dimensions and high load capacity are required.
