INA BK 1512 needle bearing with pressed housing

Product detailed description

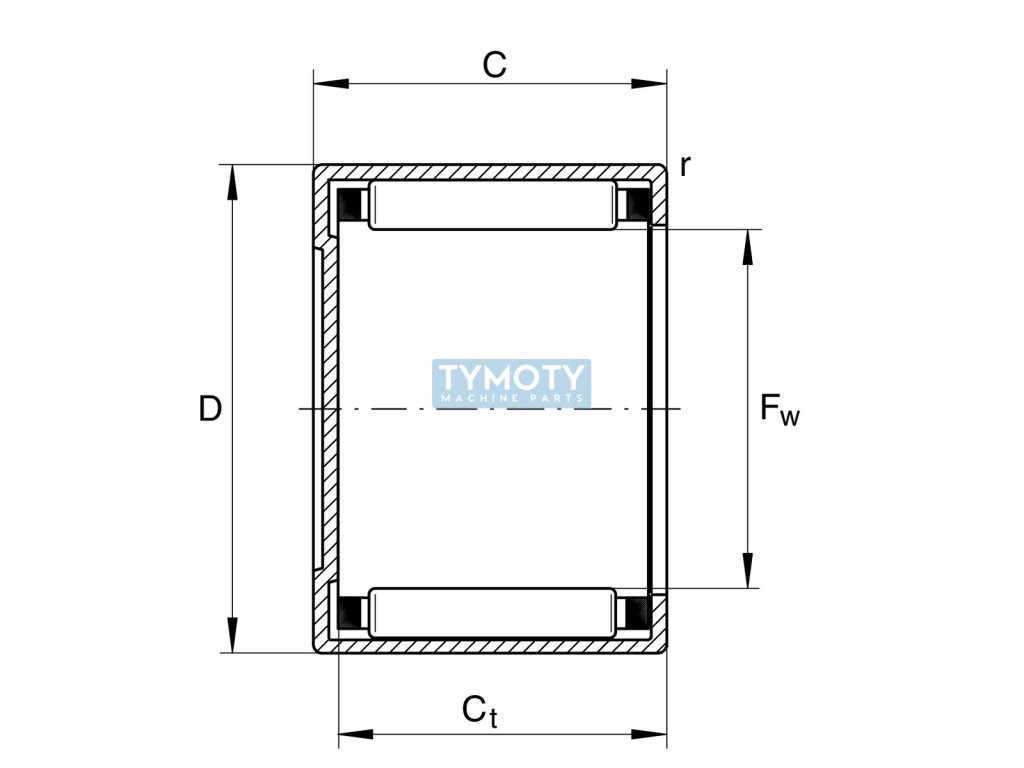

INA BK 1512 is a needle roller bearing with a pressed sleeve, designed for applications requiring high precision and reliability. This bearing is characterized by its compact design and ability to carry high radial loads with minimal dimensions. Its inner diameter is 15 mm, outer diameter is 21 mm and width is 12 mm, which makes it ideal for applications with limited space.

The bearing is equipped with a pressed steel cage, which ensures optimal needle guidance and increases wear resistance. Due to the absence of a seal, it is intended for applications where protection against external contaminants is not required or where an external seal is provided. The bearing does not have a lubrication hole, which means that it is necessary to provide external lubrication or use it in applications with sufficient internal lubrication.

INA BK 1512 is capable of operating in a temperature range from -30 °C to +140 °C, which allows it to be used in various industrial conditions. With a weight of 0.013 kg, it is lightweight, which contributes to reducing the overall weight of the structure into which it is integrated. Thanks to its design and materials, it is suitable for applications in the automotive industry, mechanical engineering and other areas where high precision and reliability in the transmission of radial forces are required.
