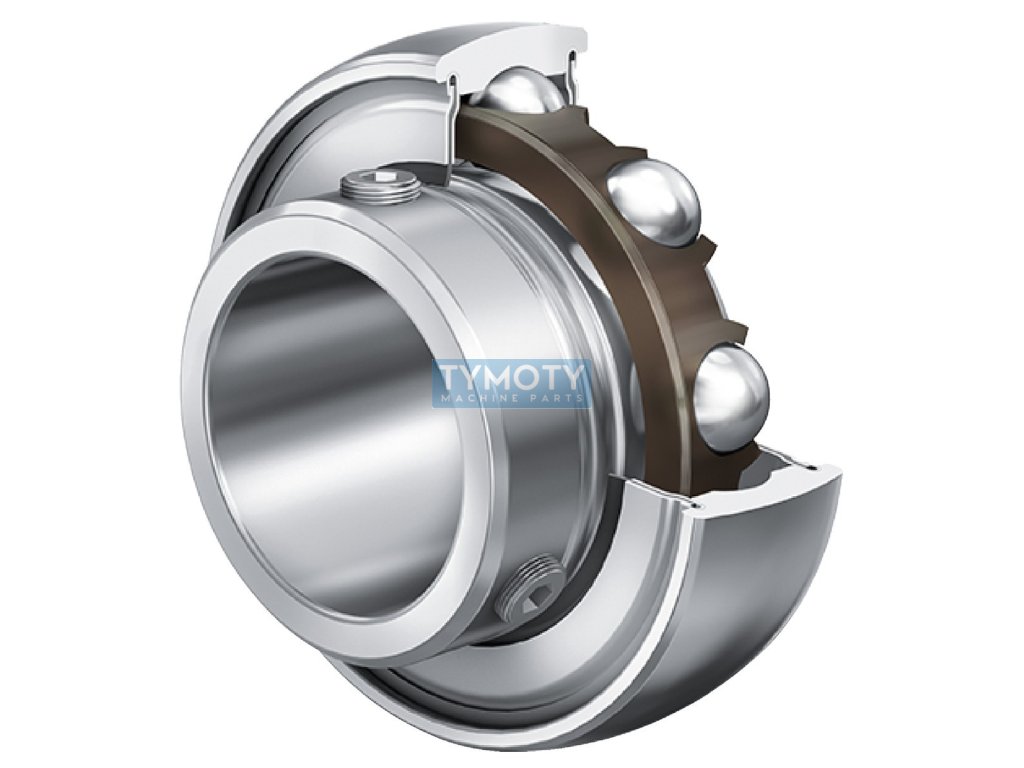

INA AY15-XL-NPP-B clamping bearing

Product detailed description

INA AY15-XL-NPP-B is a clamping bearing designed for applications requiring reliable and precise mounting of rotating components. This bearing is part of the product portfolio of the renowned manufacturer INA, which is known for its high quality and precision manufacturing.

The bearing has an inner diameter (d) of 15 mm, an outer diameter (D) of 40 mm and a width (B) of 22 mm. Its outer ring is spherical, which allows for compensation of misalignment during assembly. The inner ring is widened on one side, which increases stability and accuracy during operation. The hole profile is cylindrical, which is a standard shape for easy installation on the shaft.

The material used to manufacture the bearing is standard steel for rolling bearings, which guarantees high wear resistance and long service life. The bearing is equipped with a double-sided lip seal, which effectively protects the internal components from dirt and moisture, thereby extending its service life and reducing the need for maintenance.

The operating temperature range of the bearing is from -20 °C to +120 °C, which allows its use in various industrial conditions. The running accuracy is in class P0/PN, or ABEC 1, which means that the bearing provides reliable and accurate operation in common applications.

The bearing is mounted using set screws, which allows for easy and safe mounting on the shaft. With a weight of 0.09 kg, the bearing is lightweight, which reduces the overall weight of the assembly into which it is integrated.

INA AY15-XL-NPP-B is ideal for applications where high reliability and accuracy are required, such as machines and equipment in industrial production. Its design features and material composition guarantee long-term operation with minimal maintenance requirements.
