INA AXK 140180-A axial needle cage

Product detailed description

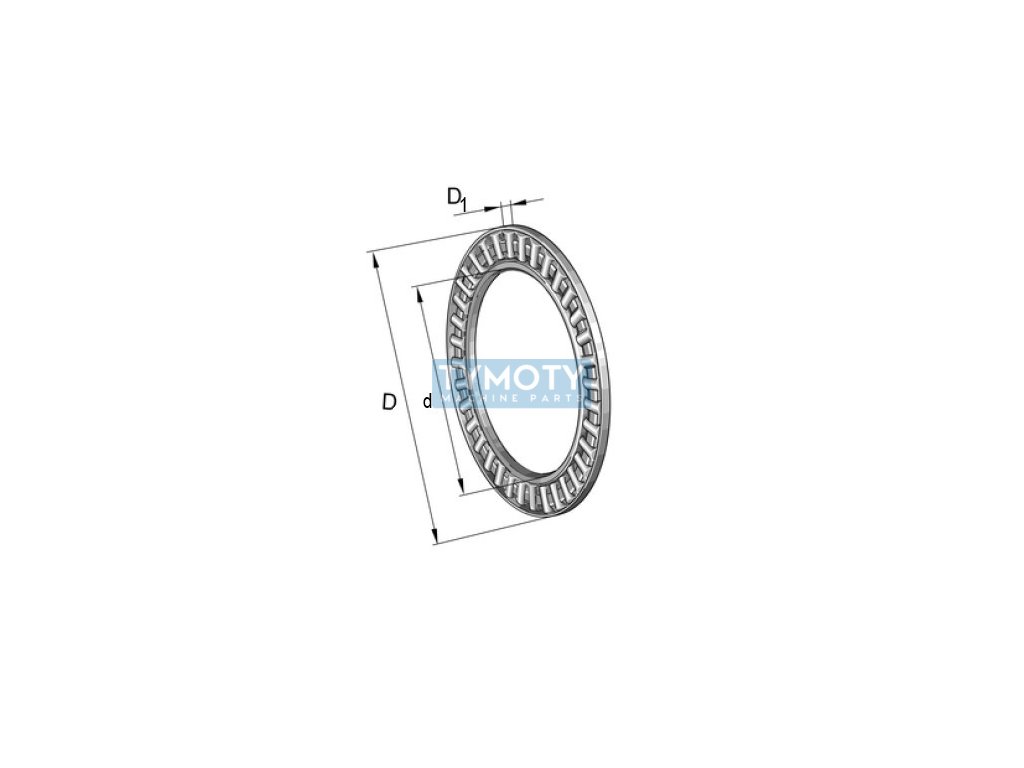

INA AXK 140180-A is a thrust needle roller bearing designed for applications that require high load capacity with minimal dimensions. This bearing is characterized by an inner diameter of 140 mm, an outer diameter of 180 mm and a width of 5 mm, which makes it ideal for use in limited spaces where axial loads need to be transferred.

Made of high-quality steel, the bearing provides high wear resistance and long service life even under difficult operating conditions. The steel cage ensures precise guidance of the needle rollers, minimizing friction and increasing the efficiency of load transfer. This type of construction is suitable for applications with high speeds and loads.

The operating temperature range of the bearing is from -20 °C to +120 °C, which allows it to be used in various industrial environments. The bearing is marked with the code AXK140180-A/0-10 and is identifiable by the manufacturer's number 000035904-9065, which simplifies its identification and ordering.

Thanks to its technical properties, the INA AXK 140180-A is suitable for a wide range of applications, including the automotive industry, mechanical engineering and other areas where it is necessary to effectively transmit axial loads while maintaining compact dimensions.
