INA AXK 0515-TV axial needle cage

Product detailed description

INA AXK 0515-TV is an axial needle roller bearing designed for applications requiring axial load transfer. This component is made of pressed steel, which is standard for rolling bearings, which guarantees high resistance and long service life. The cage is designed for unidirectional loading, which means that it is able to transfer forces acting in one direction.

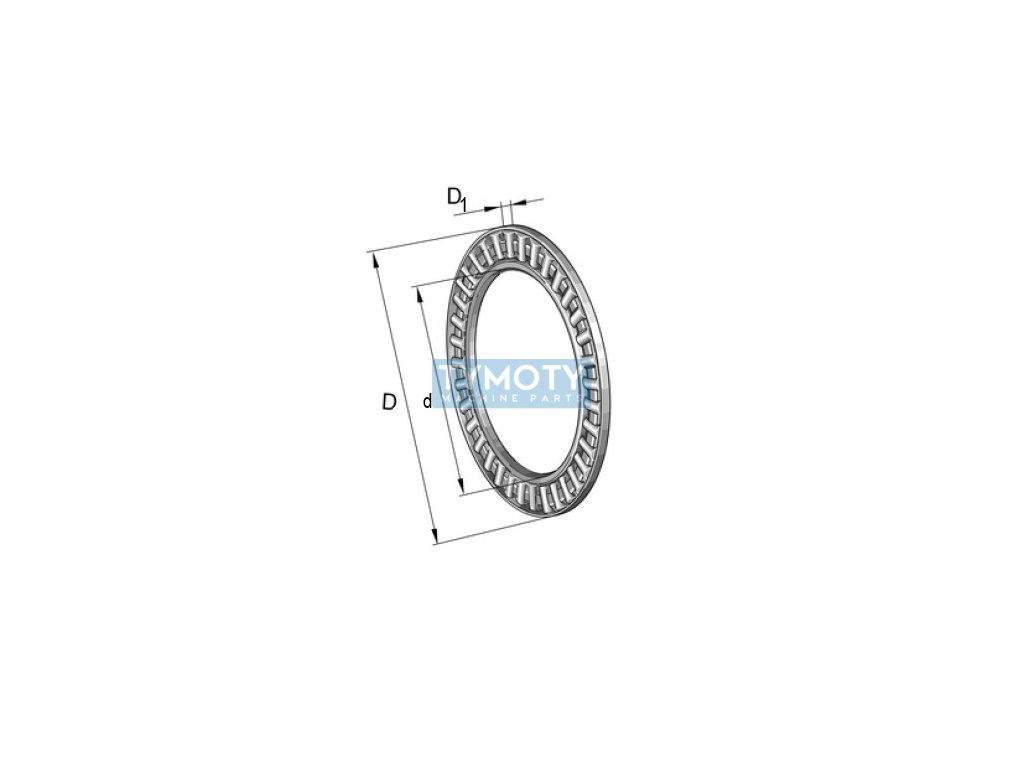

The dimensions of this needle roller bearing are as follows: the inner diameter (d) is 5 mm, the outer diameter (D) is 15 mm and the width (B) is 2 mm. These compact dimensions allow it to be used in limited spaces where high efficiency in load transfer is required.

The manufacturer INA, belonging to the Schaeffler Group, is known for its quality bearing solutions. The product is marked with the manufacturer's number 000793809-9065 and is also identifiable by the marking AXK0515-TV/0-10. The total weight of the component is only 0.001 kg, which contributes to reducing the total weight of the assembly in which it is used.

The operating temperature range of this cage is from -20 °C to +120 °C, which allows it to be used in various industrial applications where these temperature conditions are common. The delivery includes only the axial cage with needles itself, which is important to consider when planning assembly and integration into the system.
