INA 81109-TV axial roller bearing

Product detailed description

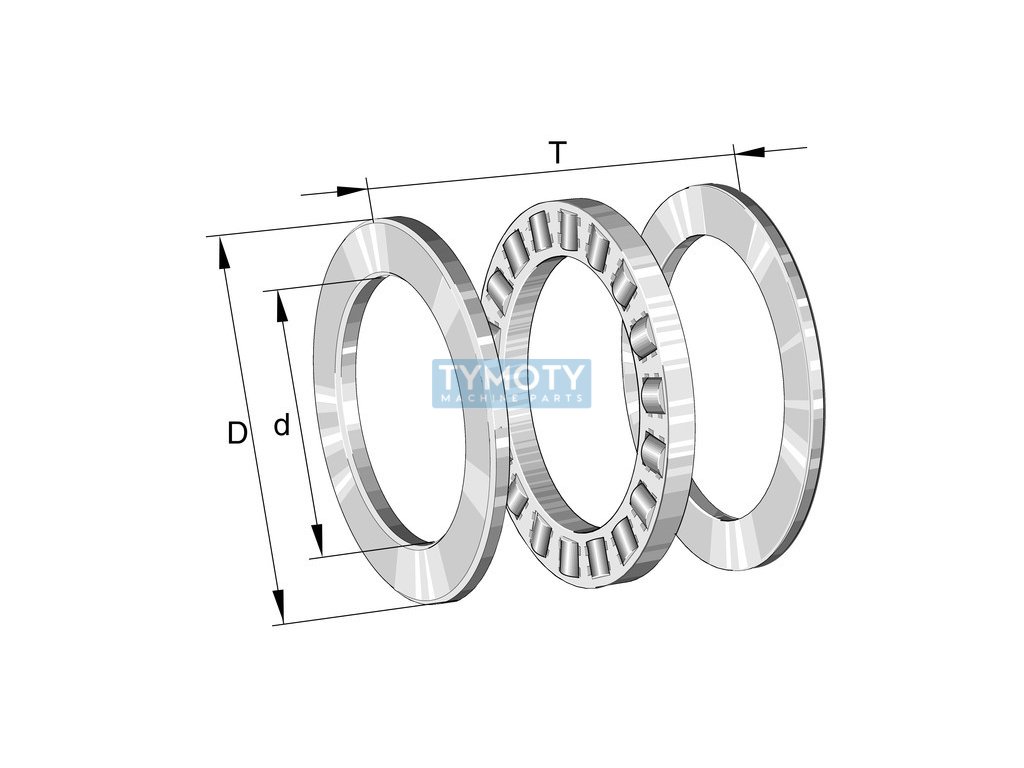

INA 81109-TV is a thrust roller bearing designed for applications requiring axial load transfer in one direction. This bearing is single-row and its design is optimized for high load capacity and running accuracy. With an inner diameter of 45 mm, an outer diameter of 65 mm and a width of 14 mm, this bearing is compact and suitable for various industrial applications.

The bearing is made of high-quality steel, which is the standard for rolling bearings, which guarantees its long service life and reliability. The polyamide cage ensures optimal guidance of the rollers and contributes to reducing friction and wear. The bearing is designed for operation in a temperature range from -20 °C to +120 °C, which allows it to be used in various climatic conditions.

The running accuracy is classified in class P0/PN, which corresponds to ABEC 1, and guarantees sufficient accuracy for most standard applications. The bearing does not have the possibility of angular adjustment, which means that it is designed to transfer loads in a precisely defined direction without the possibility of deviation.

The total weight of the bearing is 0.131 kg, which contributes to its easy handling and installation. The product is supplied as a complete thrust roller bearing, ready for immediate installation. The manufacturer is the renowned company INA, which is part of the Schaeffler Group, known for its quality solutions in the field of bearings.
