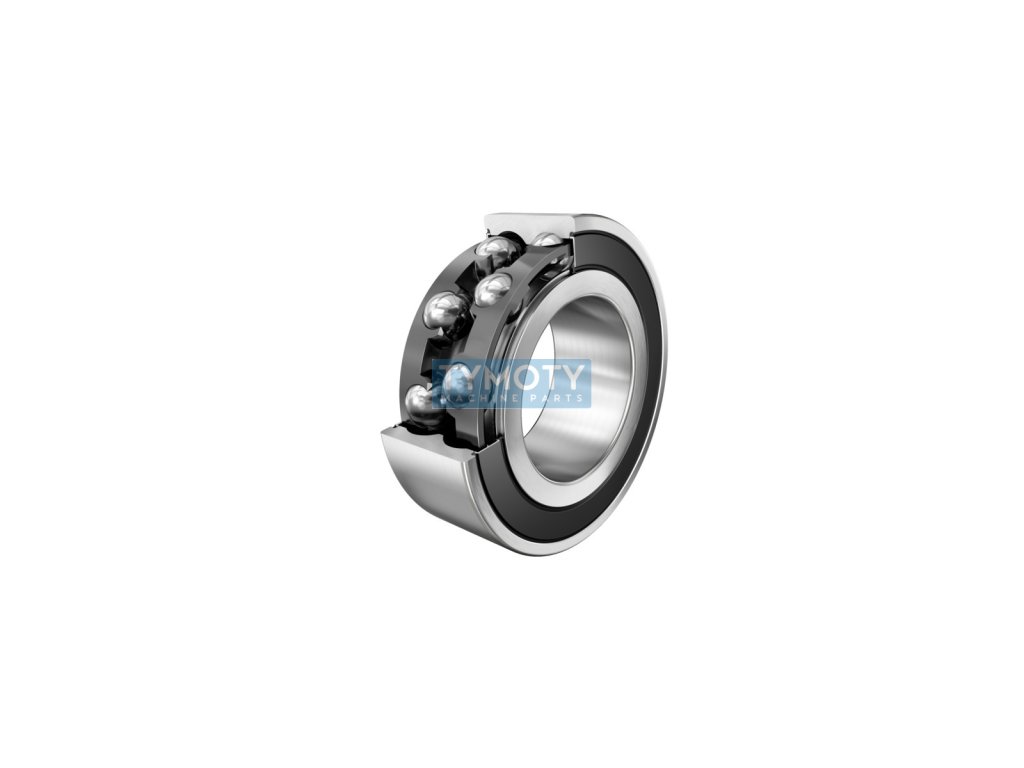

INA 3005-2RS angular contact ball bearing
Code: 326955
Product detailed description
INA 3005-2RS - non-separable double-row angular contact ball bearing, plastic cage made of glass-fiber reinforced polyamide guided by two rows of balls, double-sided friction seal and normal axial clearance.Air-tight rubber, which is vulcanized between steel rings and pressed into grooves in the outer ring. The sealing blades rest on the beveled edges of the inner ring. The bearing is filled with high-quality plastic grease with a temperature range from -40°C to +120°C for the entire service life of the bearing.
The bearing has a contact angle of 25° and the rolling elements are arranged as in a paired pair of single-row angular contact ball bearings. The bearing can carry radial and bidirectional axial loads."
Additional parameters
| Category: | Bearings > ball bearing with diagonal contact > 30.. double row > 3005 |
|---|---|
| Weight: | 0.107 kg |
| EAN: | 4012802027440 |
| Angle ( ° ): | 30-40° |
| Cage: | polyamide |
| Clearance: | normal |
| Diameter D (mm): | 25, 47 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | INA |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | double-sided - rubber |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 16 |
| Číslo výrobce: | 000958948-0000 |
| Značení: | 3005-2RS |
| Typ: | kuličkové ložisko s kosoúhlým stykem |
