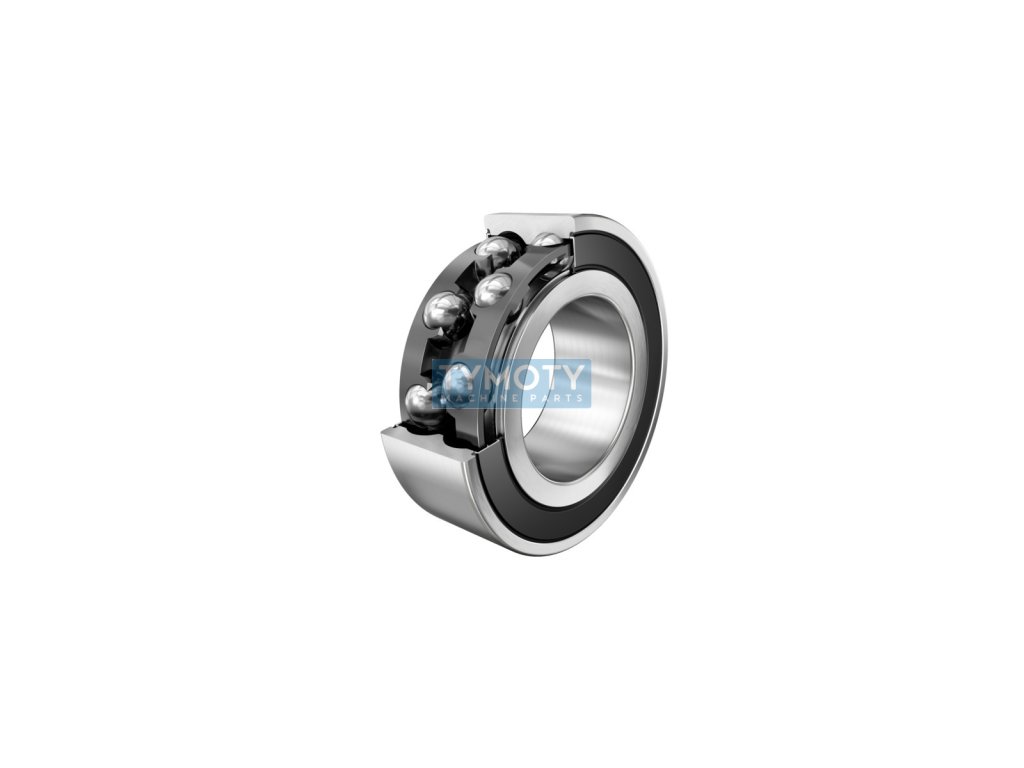

INA 3003-2Z angular contact ball bearing

Product detailed description

The INA 3003-2Z is an angular contact ball bearing designed for applications requiring high precision and reliability. This bearing is characterized by its ability to carry combined loads, i.e. radial and axial forces, which is typical of angular contact bearings.

The bearing has an inner diameter (d) of 17 mm, an outer diameter (D) of 35 mm and a width (B) of 14 mm. It is made of high-quality steel, which ensures a long service life and resistance to wear. The bearing is equipped with a double-sided sheet metal cover, which provides protection against dirt and contamination, thereby extending its service life. The cover also helps to keep the lubricant inside the bearing, reducing the need for maintenance.

The polyamide cage that holds the balls in place is light and durable, which contributes to reducing friction and noise during operation. The bearing is designed for operation in a temperature range of -20 °C to +120 °C, which allows it to be used in various industrial applications.

The running accuracy is in class P0/PN, which corresponds to the ABEC 1 accuracy class, and provides sufficient accuracy for common industrial applications. The bearing has normal radial clearance, which is suitable for standard operating conditions.

The INA 3003-2Z is a double-row bearing, which means that it contains two rows of balls, which increases its load-carrying capacity and improves stability. Due to the absence of a flange or groove on the outer ring, the bearing is suitable for applications where easy mounting and dismounting is required.

This bearing is ideal for use in various industrial sectors, including mechanical engineering, automotive and manufacturing, where reliability and high performance are required.
