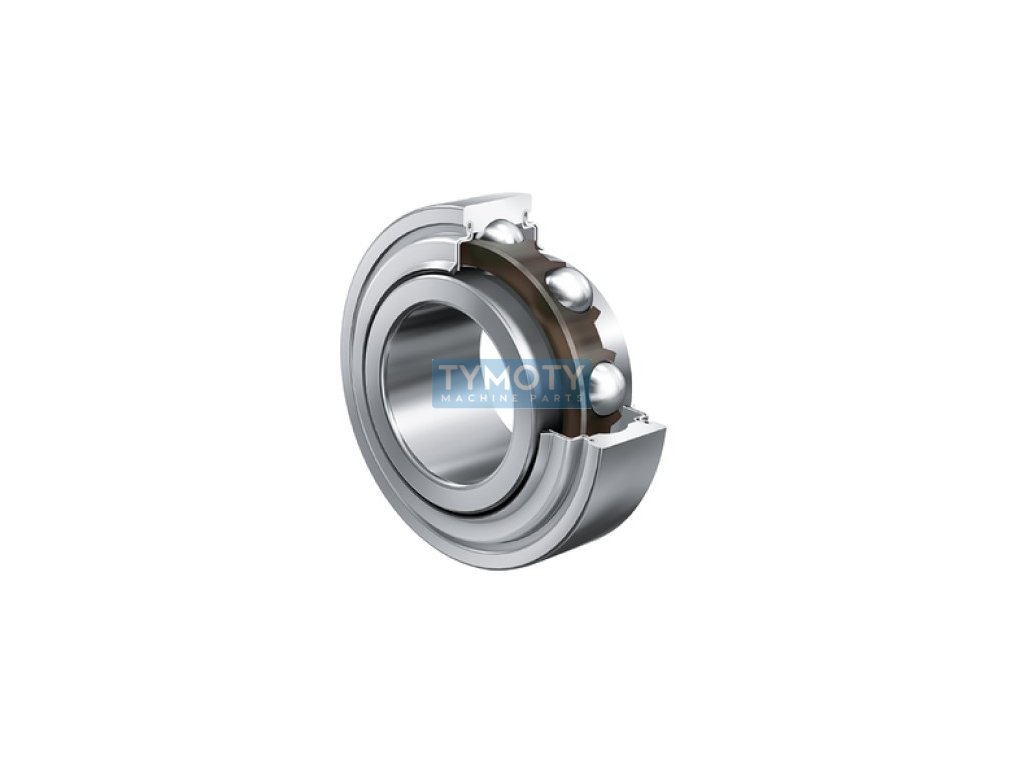

INA 205-KRR clamping bearing, cylindrical surface

Product detailed description

The INA 205-KRR is a cylindrical surface mounted bearing designed for precise and reliable applications in various industries. This bearing has an inner diameter (d) of 25 mm, an outer diameter (D) of 52 mm and a width (B) of 21 mm. The width of the inner ring (C) is 15 mm. The bearing is made of high-quality standard steel for rolling bearings, which guarantees its long service life and wear resistance.

The outer ring of the bearing is cylindrical in shape, while the inner ring is widened on both sides, which allows for better load distribution and increases the stability of the bearing during operation. The bore profile is cylindrical, which simplifies mounting and dismounting of the bearing.

The bearing is equipped with a double-sided lip seal, which provides protection against dust and dirt, thereby extending the service life of the bearing. The operating temperature range is from -20 °C to +120 °C, which allows its use in various climatic conditions.

The running accuracy is in the accuracy class P0/PN, or ABEC 1, which is the standard accuracy level for common applications. The bearing weighs 0.158 kg and does not require any additional fastening, which simplifies its installation.

This component is ideal for applications where high reliability and accuracy are required, such as agricultural machinery, transport systems or various mechanical devices. The manufacturer INA, belonging to the Schaeffler Group, is a guarantee of quality and innovative solutions in the field of bearings.
