INA 201-XL-NPP-B bearing

Product detailed description

INA 201-XL-NPP-B is a clamping bearing designed for a wide range of industrial applications. This bearing is characterized by its high quality and precision, which is ensured by the renowned manufacturer INA, belonging to the Schaeffler Group.

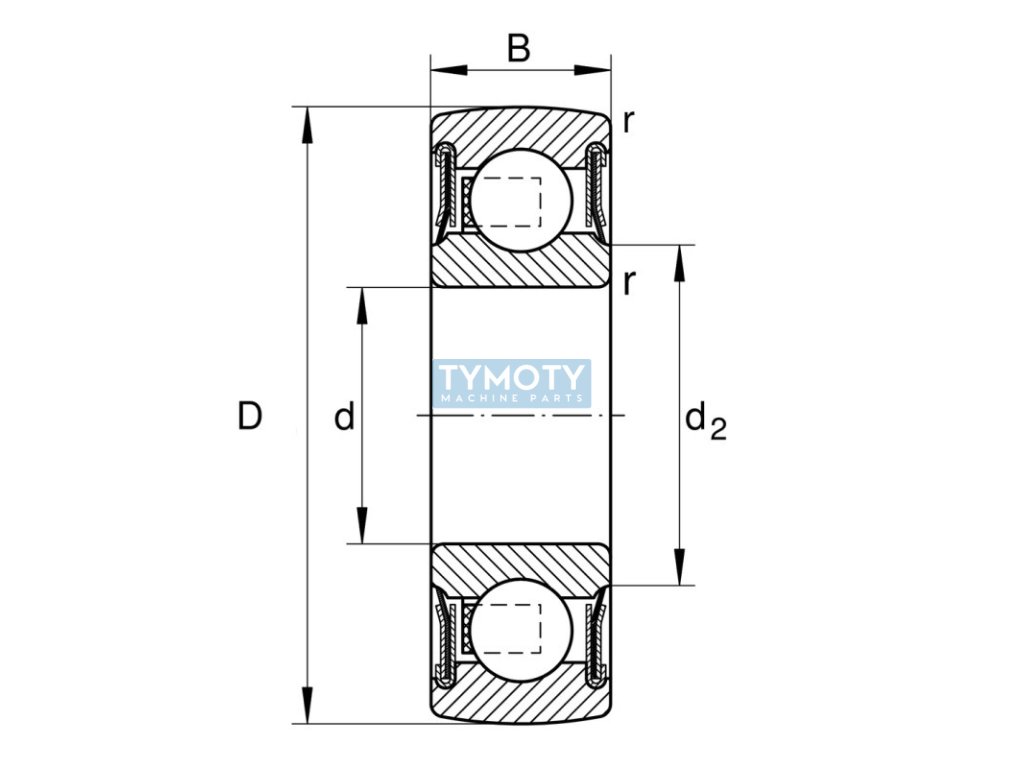

The bearing has an inner diameter (d) of 12 mm, an outer diameter (D) of 32 mm and a width (B) of 10 mm. The inner ring of the bearing is without expansion and has a cylindrical bore, which allows easy mounting on the shaft. The outer ring has a spherical surface shape, which improves the bearing's ability to adapt to misalignment and reduces stress in the bearing when mounted in the bearing housing.

The bearing material is standard steel for rolling bearings, which provides high wear resistance and a long service life. The bearing is equipped with a plastic cage, which ensures proper guidance of the rolling elements and reduces friction. The double-sided contact seal with a lip profile provides effective protection against dust and dirt, extending the bearing life and reducing the need for maintenance.

The bearing is designed for operation in a temperature range from -20 °C to +120 °C, which allows it to be used in various climatic conditions. The running accuracy is in class P0/PN, or ABEC 1, which is the standard accuracy level for most common applications. The normal bearing clearance ensures optimal operation without excessive friction or vibration.

With a weight of 0.03 kg, this bearing is lightweight, which makes it easy to handle and install. The INA 201-XL-NPP-B bearing is ideal for applications where reliability, accuracy and easy maintenance are required, while its design allows it to be used without additional fasteners.
