High self-locking nut DIN 982 M14 stainless steel A2

Product detailed description

The DIN 982 M14 self-locking nut is a hexagonal nut with a metric M14 thread, made of A2 grade stainless steel. This type of nut is designed according to DIN 982, ISO 7040 and ČSN 021492 standards, which guarantees its compatibility and reliability in various industrial applications.

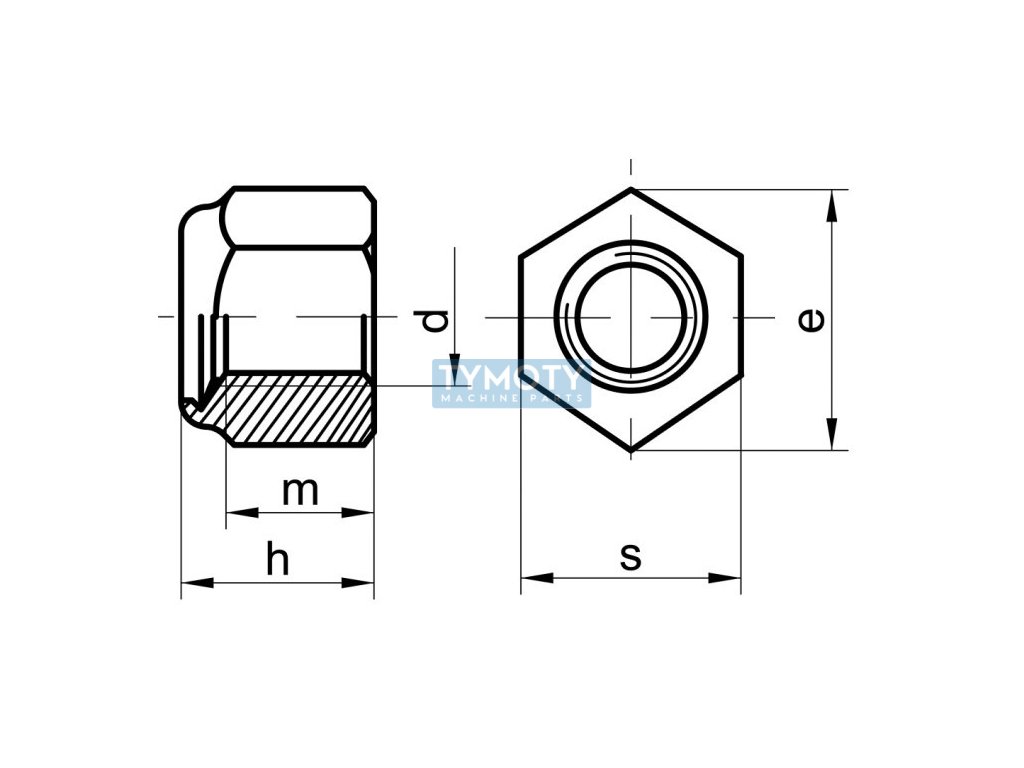

The nut has a total height of 16 mm, while the height of the threaded part is 12.1 mm. The width between the surfaces (dimension s) is 22 mm and the width between the circumferences (dimension e) is 24.49 mm. The nut is equipped with a nylon insert that serves as a mechanism against self-loosening, thus ensuring the strength and stability of the connection even under higher loads and vibrations.

The material used, A2 stainless steel, provides excellent corrosion resistance, which is ideal for applications in environments with high humidity or chemical stress. The surface treatment is not applied, which is common for stainless steel components, as their natural resistance to corrosion is sufficient.

The nut is intended for use in mechanical structures where high joint strength and resistance to dynamic loads are required. It is suitable for use in the automotive industry, mechanical engineering and equipment assembly, where it is necessary to ensure the reliability and safety of joints.
