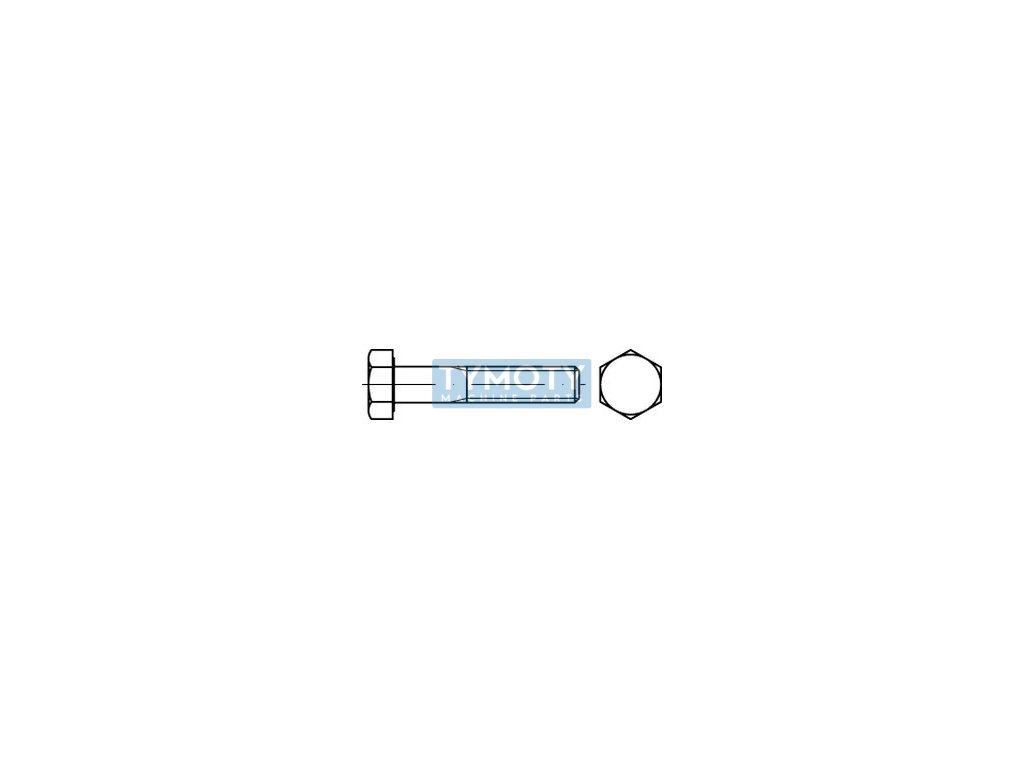

Hexagonal screw with partial thread DIN 960 M14x1.50x50-10.9

Product detailed description

The screw with a hexagonal head and a partial fine metric thread according to DIN 960, ČSN 021101 and ISO 8765 is intended for precise mechanical connections that require high strength. This screw has a diameter of M14 with a fine thread with a pitch of 1.5 mm and a total length of 50 mm. The thread length is 34 mm, which allows a firm hold in the material, while the remaining part of the screw without thread ensures optimal tensile and bending strength.

The screw is made of steel with a strength class of 10.9, which means that it has a minimum yield strength of 900 MPa and a minimum tensile strength of 1000 MPa. This makes it suitable for use in applications where high demands are placed on mechanical resistance and reliability of the connections. The surface of the screw is without further treatment, which is suitable for applications where additional corrosion protection is not required.

The hexagonal head of the screw has a width between the surfaces (s) of 22 mm and a width between the diagonals (e) of 24.49 mm, which allows the use of standard tools for assembly and disassembly. The head height (k) is 8.8 mm, which provides sufficient space for the application of torque during assembly.

This screw is ideal for use in mechanical engineering and construction, where a reliable and strong connection of components is required. It is suitable for applications where precision and high strength are required, such as the automotive industry, machine and equipment manufacturing or structures with dynamic loads.
