Hexagonal screw with partial thread DIN 960 M12x1.50x120-10.9

Product detailed description

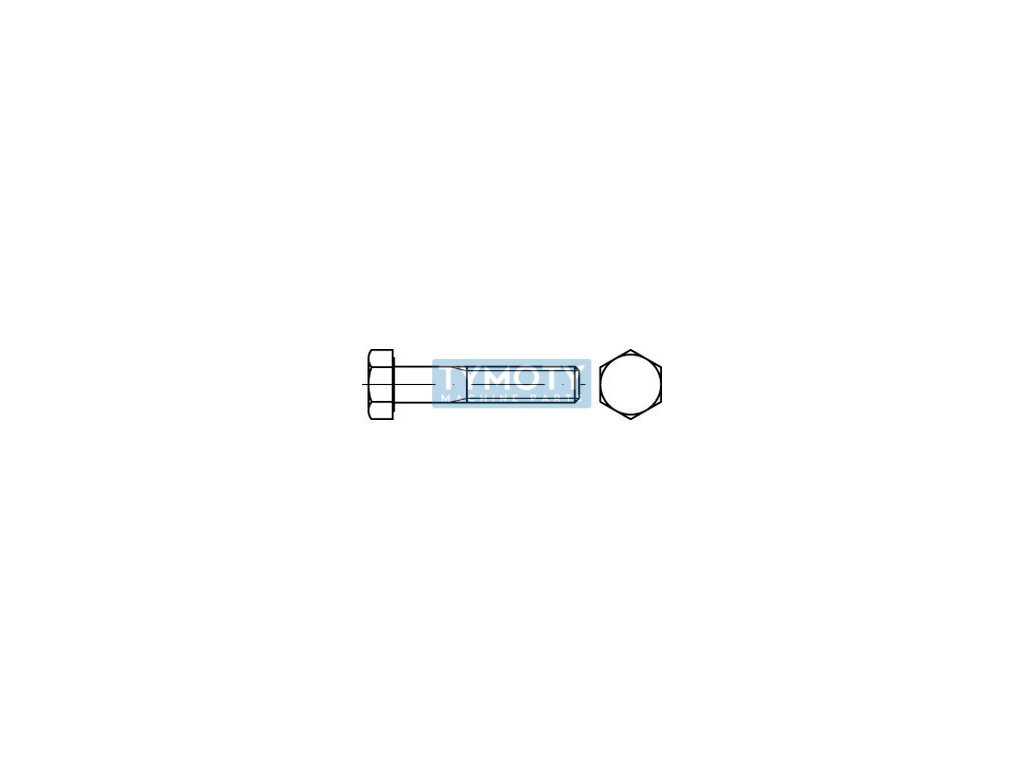

The screw with a hexagonal head and partial thread according to DIN 960, ČSN 021101 and ISO 8765 is intended for precise mechanical connections that require high strength. This screw has a metric fine thread with dimensions M12x1.50, which means that the outer diameter of the thread is 12 mm and the thread pitch is 1.5 mm. The total length of the screw is 120 mm, while the length of the threaded part is 30 mm.

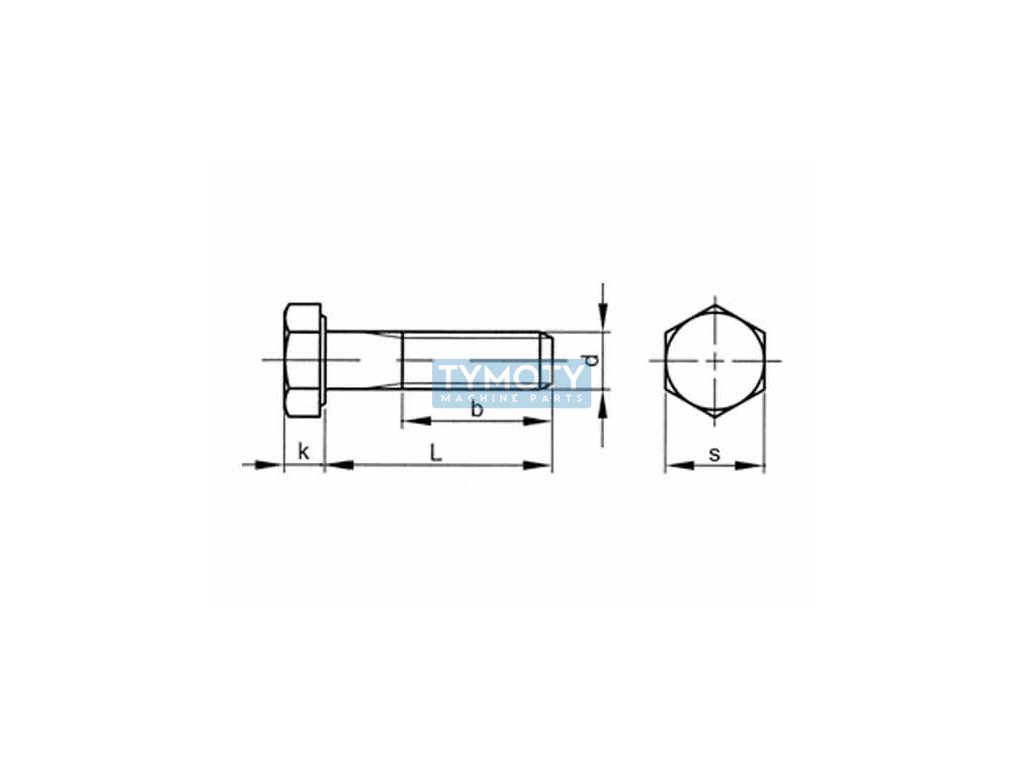

The screw head is hexagonal, with dimensions of the width between the surfaces (s) of 19 mm and the width between the diagonals (e) of 21.1 mm, which allows the use of standard keys for assembly. The head height (k) is 7.5 mm, which contributes to the stability and strength of the connection. The screw is made of steel of strength class 10.9, which guarantees high strength and resistance to mechanical stress.

This screw has no surface treatment, which is important to consider when using it in an environment where it may be exposed to corrosion. The screw is ideal for applications where high connection strength and assembly accuracy are required, such as mechanical engineering, the automotive industry or other technical applications requiring a reliable and strong connection.
