Hexagonal screw with partial thread DIN 960 M10x1.25x90-8.8

Product detailed description

The partially threaded hexagon head screw according to DIN 960, ČSN 021101 and ISO 8765 is designed for precision mechanical connections that require high strength and accuracy. This screw has a metric fine thread with a diameter of M10 and a pitch of 1.25 mm, which allows for fine adjustment and a tight fit in applications where higher accuracy is required compared to standard metric threads.

The total length of the screw is 90 mm, while the thread length is 26 mm, which provides sufficient thread surface for a tight connection. The screw is made of steel of strength class 8.8, which means that it has a yield strength of 640 MPa and a tensile strength of 800 MPa, making it suitable for applications with high mechanical loads.

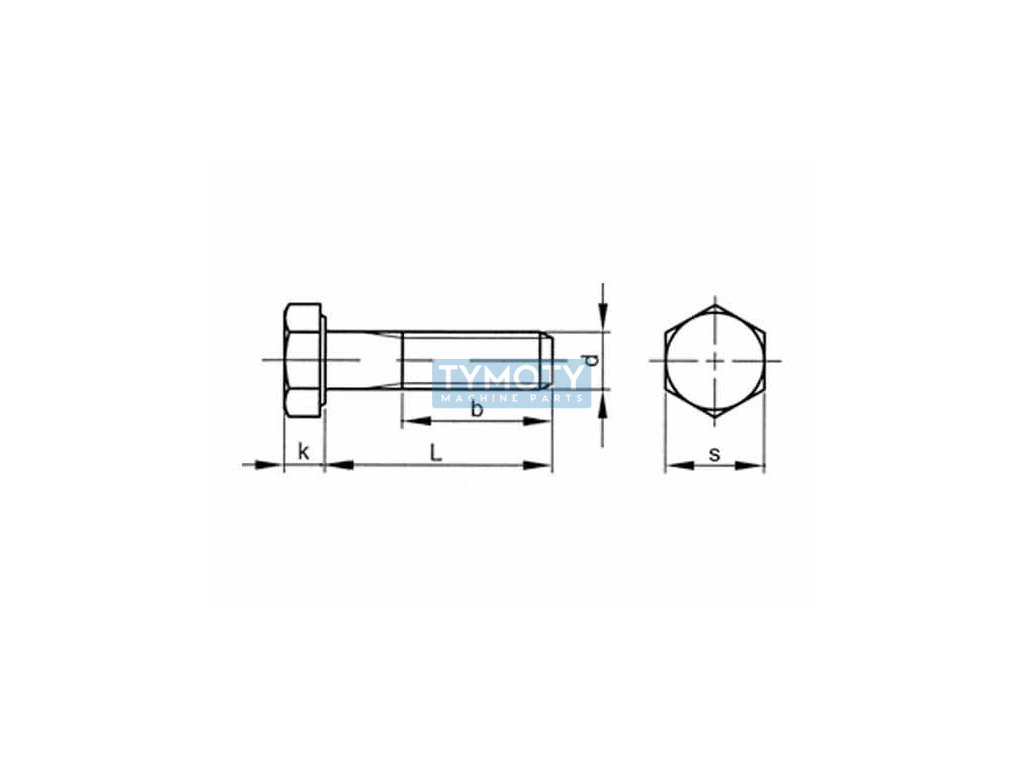

The screw head has a hexagonal shape with dimensions of width between surfaces (s) of 17 mm and width between diagonals (e) of 19 mm, while the head height (k) is 6.4 mm. This shape allows for easy assembly and disassembly using a standard wrench or socket wrench.

The screw is supplied without surface treatment, which means that it is suitable for applications where additional corrosion protection or aesthetic treatment is not required. If necessary, a suitable surface treatment can be applied according to the requirements of a specific application.

This screw is ideal for use in mechanical engineering, the automotive industry and other areas where a reliable and strong connection with high precision is required.
