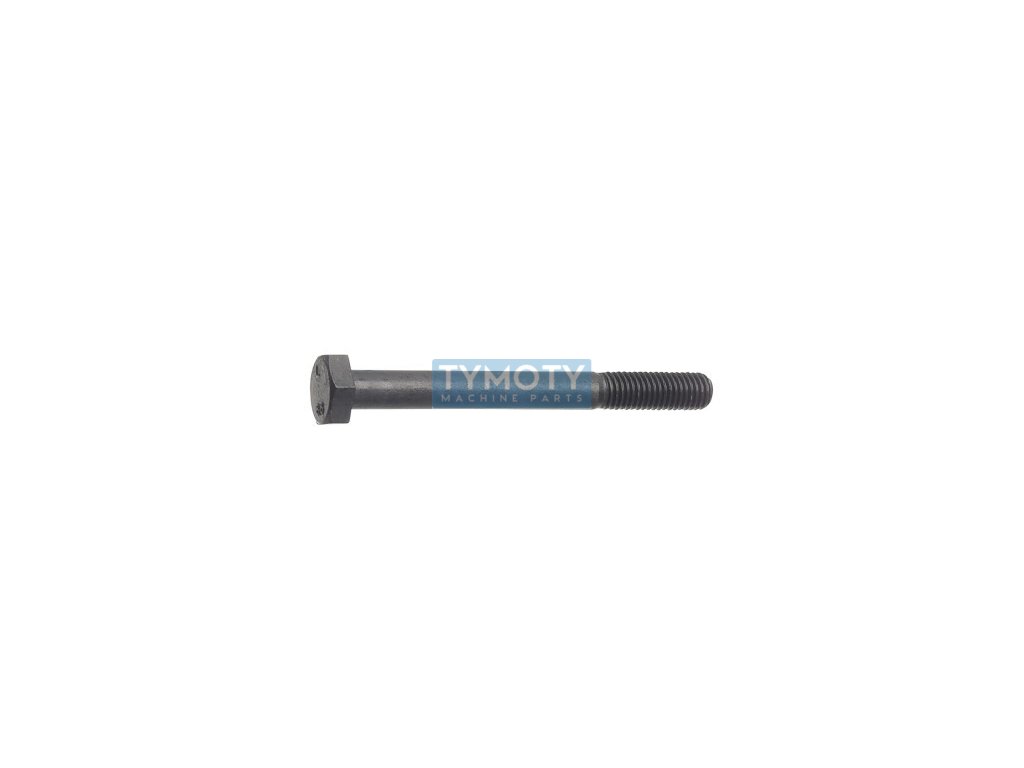

Hexagonal screw with partial thread DIN 931 M8x250-8.8 without PU
Code: 811118
Product detailed description
Steel fasteners - screw M8x250 ČSN 021101.50 - DIN 931-8.8 - steel screw with hexagonal head, made of steel of strength class 8.8 without surface treatment, with partial metric thread M8 with a standard pitch of 1.25 mm. screws with thread L = 250 mm.Additional parameters
| Category: | Fasteners > hexagon head screws > partial thread DIN 931 > steel 8.8 without treatment |
|---|---|
| Weight: | 0.104 kg |
| EAN: | 4043952222881 |
| CSN standard: | 021101,50 |
| Diameter D (mm): | M8 |
| DIN standard: | 931 |
| EN standard: | 24014 |
| Fortress class: | 8,8 |
| Head shape: | hexagonal |
| Height k (mm): | 5,3 |
| ISO standard: | 4014 |
| Length L (mm): | 250 |
| Material: | steel |
| Pitch: | 1,25 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width e (mm): | 14 |
| Width s (mm): | 13 |
