Hexagonal screw with collar DIN 6921 M8x40-8.8 without PU
Code: 819520
Product detailed description

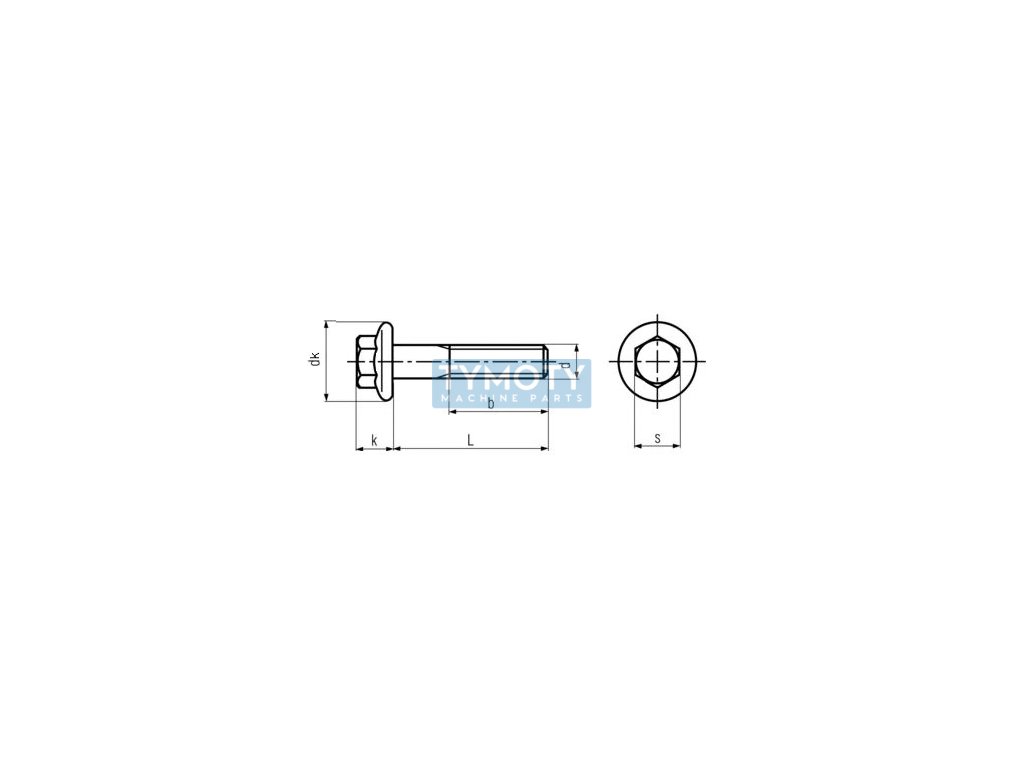

Steel fastener - M8x40 DIN 6921-8.8 bolt - steel bolt with hexagonal head with smooth collar, made of steel of strength class 8.8 without surface treatment, with partial metric thread M8 with standard pitch 1.25 mm. Minimum thread length b = 22 mm. Length of the bolt body with thread L = 40 mm.Additional parameters
| Category: | Fasteners > hexagon head screws > with collar DIN 6921 > steel 8.8 without treatment |
|---|---|
| Weight: | 0.024 kg |
| EAN: | 4043952502457 |
| Diameter D (mm): | M8 |
| Diameter dk (mm): | 18 |
| DIN standard: | 6921 |
| EN standard: | 1665 |
| Fortress class: | 8,8 |
| Head shape: | hexagonal with collar |
| Height k (mm): | 8,1 |
| Length L (mm): | 40 |
| Material: | steel |
| Pitch: | 1,25 |
| Surface finish: | without modification |
| Thread length b (mm): | 22 |
| Thread type: | metric |
| Width s (mm): | 13 |
