Hexagonal screw with collar DIN 6921 M8x10-10.9 without PU

Product detailed description

The DIN 6921 hexagon socket head cap screw with M8x10 collar is made of 10.9 grade steel, which ensures high strength and resistance to mechanical stress. This screw is uncoated, which means it is not protected against corrosion, and is therefore particularly suitable for applications in dry environments or where the surface finish is provided in other ways.

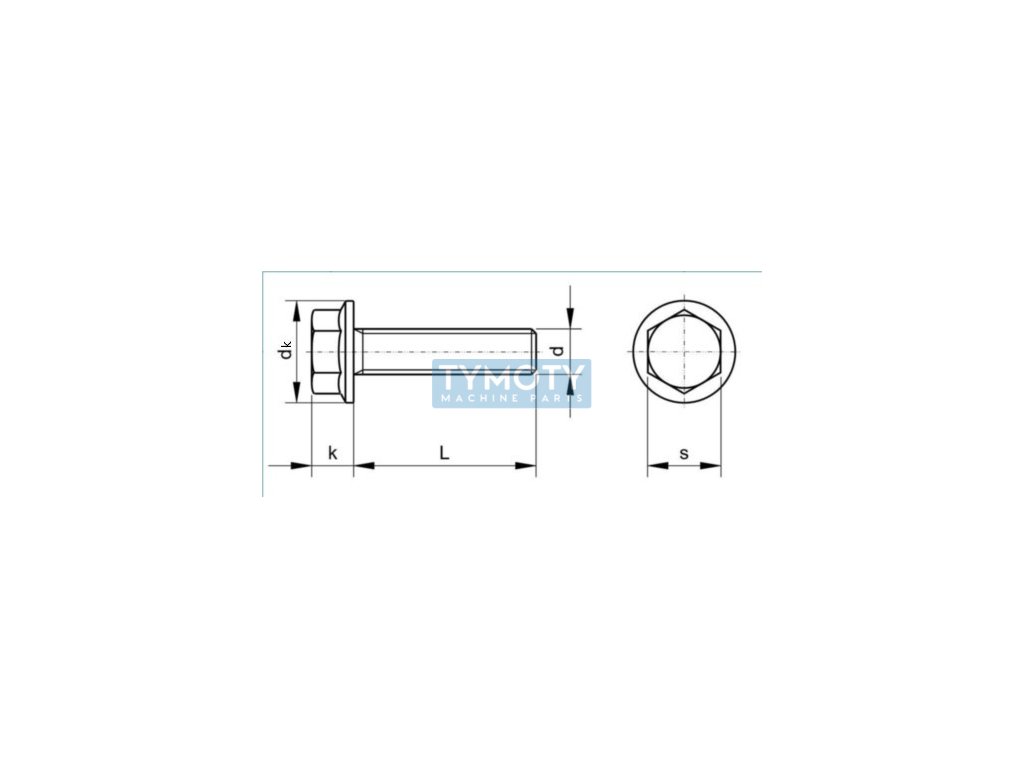

The main characteristic of this screw is a hexagonal head with an integrated collar, which serves to evenly distribute pressure on the surface of the material, thereby reducing the risk of damage to the part being fastened. The thread diameter is M8, with a screw length of 10 mm, while the metric thread has a pitch of 1.25 mm. The head width is 13 mm and the head height including the collar is 8.1 mm, which provides sufficient space for the use of a standard wrench. The collar diameter is 18 mm, which increases the stability and strength of the connection. The EN 1665 standard, which is equivalent to DIN 6921, guarantees that the screw meets internationally recognized quality and dimensional standards. This screw is ideal for use in mechanical engineering, the automotive industry and other technical areas where high mechanical properties and precise dimensional tolerances are required.
