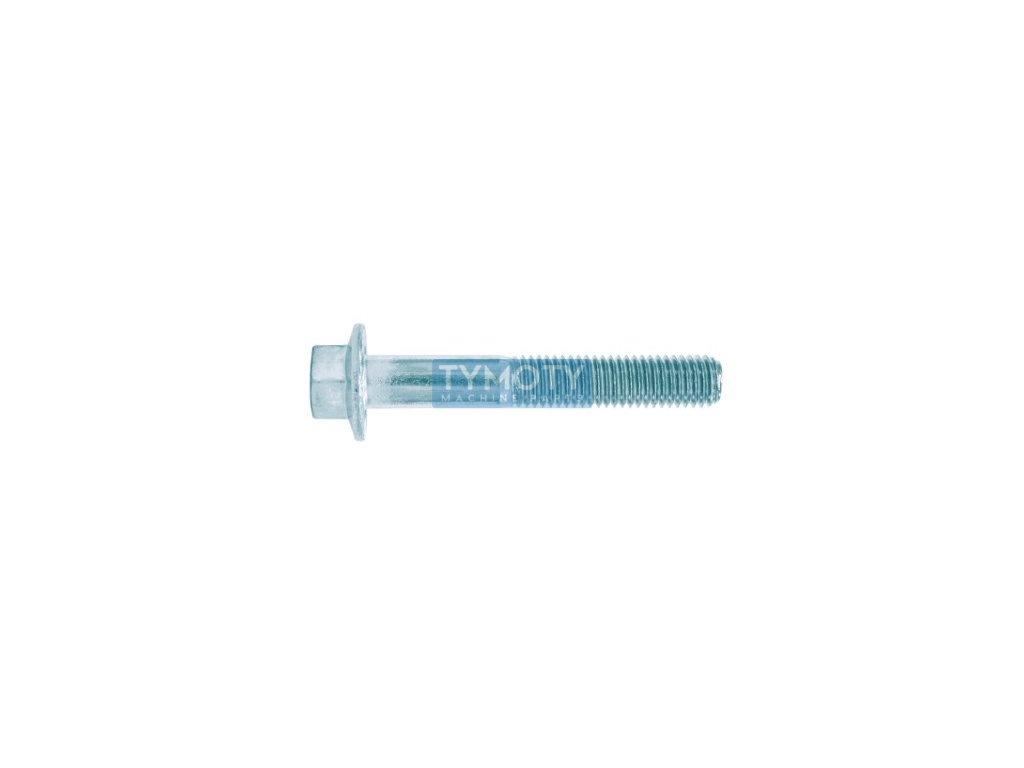

Hexagonal screw with collar DIN 6921 M10x35-8.8 galvanized

Product detailed description

The DIN 6921 hexagon socket head cap screw with a collar, M10 x 35, is made of steel of strength class 8.8. This screw is designed with high resistance to mechanical stress, which is ensured by its strength class 8.8, which indicates a minimum yield strength of 640 MPa and a minimum tensile strength of 800 MPa. The surface treatment is white zinc plating, which provides protection against corrosion and increases the service life of the component in aggressive environments.

The screw has a hexagonal head with a collar, which increases the contact area and improves pressure distribution during assembly. The head width is 15 mm and its height is 9.2 mm. The collar has a diameter of 22.3 mm, which provides additional stability and reduces the risk of damage to the assembled material. The shape of the head allows for easy assembly and disassembly using a standard hexagonal wrench.

The screw is equipped with a metric thread with a pitch of 1.50 mm and a thread length of 26 mm, which allows for a strong and reliable connection. The total length of the screw is 35 mm. This screw is suitable for applications where high strength and reliability of the connection are required, such as structures in the mechanical engineering, automotive industry and construction. The screw is comparable to the EN 1665 standard, which defines similar design properties for hexagon socket head cap screws.
