Hexagonal screw with collar DIN 6921 M10x25-8.8 without PU
Code: 819530
Product detailed description

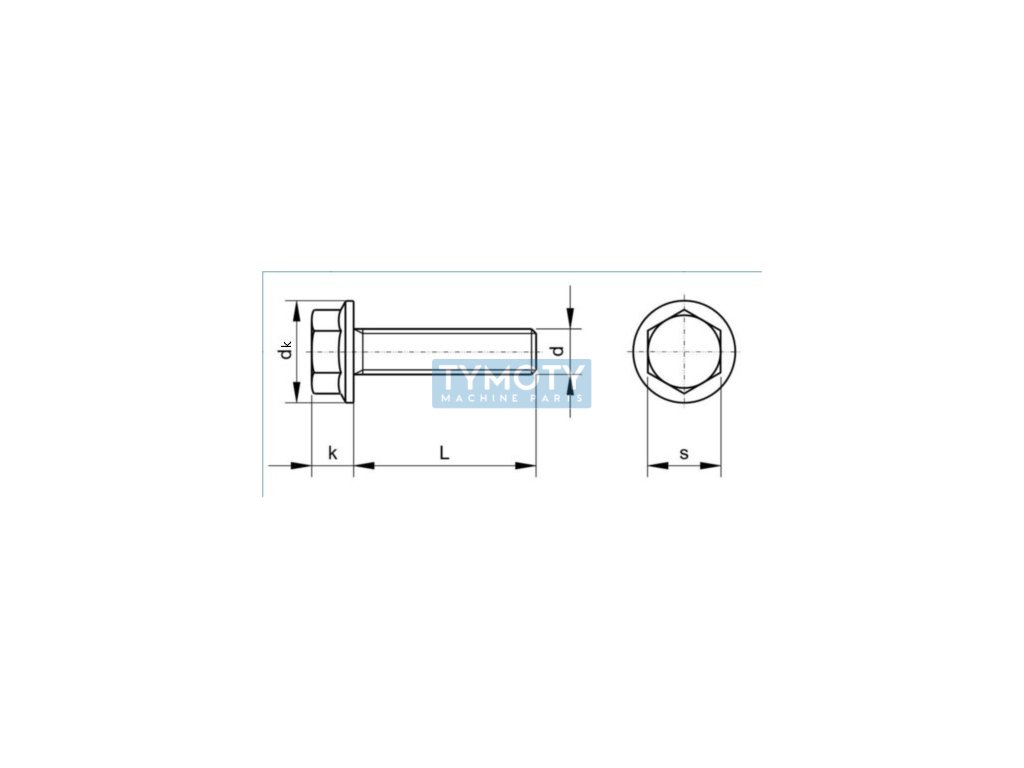

Steel fastener - bolt M10x25 DIN 6921-8.8 - steel bolt with hexagonal head with smooth collar, made of steel of strength class 8.8 without surface treatment, with metric thread M10 with standard pitch 1.50 mm. Length of the bolt body with thread L = 25 mm.Additional parameters
| Category: | Fasteners > hexagon head screws > with collar DIN 6921 > steel 8.8 without treatment |
|---|---|
| Weight: | 0.029 kg |
| EAN: | 4043952502495 |
| Diameter D (mm): | M10 |
| Diameter dk (mm): | 22,3 |
| DIN standard: | 6921 |
| EN standard: | 1665 |
| Fortress class: | 8,8 |
| Head shape: | hexagonal with collar |
| Height k (mm): | 9,2 |
| Length L (mm): | 25 |
| Material: | steel |
| Pitch: | 1,50 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width s (mm): | 15 |
