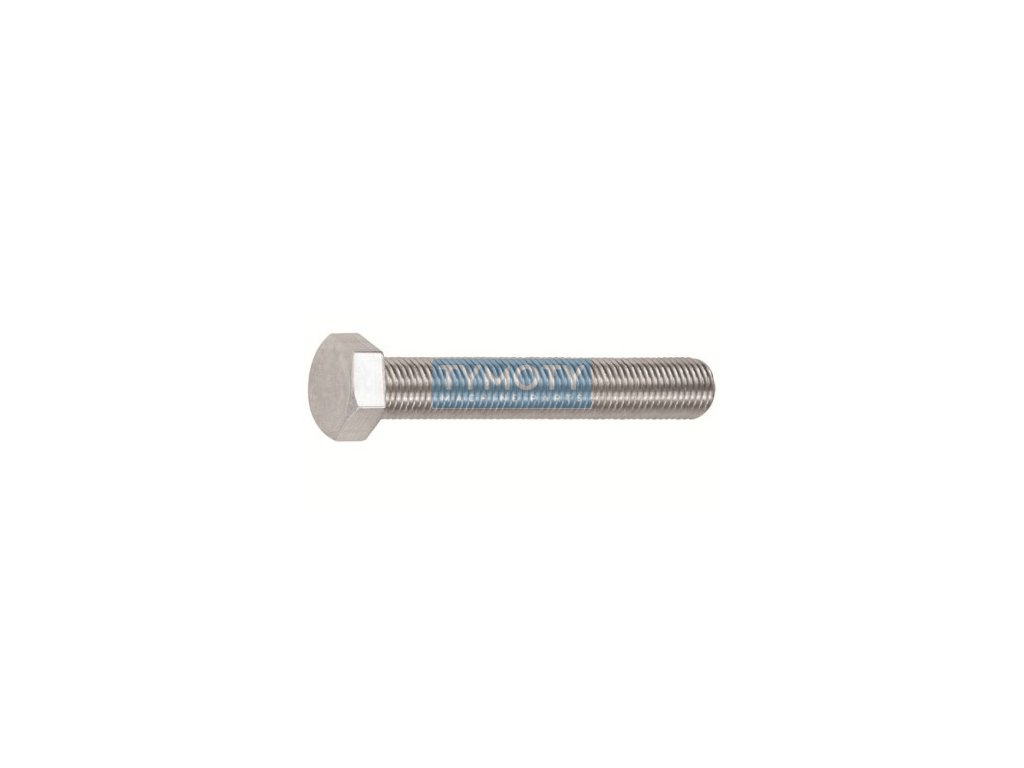

Hexagonal screw full thread DIN 933 M14x100 stainless steel A4-70
Code: 891160
Product detailed description
ČSN 021103 - DIN 933-A4-70 M14x100 - stainless steel fastener - screw with hexagonal head and thread to the head, made of stainless steel A4, strength class 70, with metric thread M14 with standard pitch 0 mm.Additional parameters
| Category: | Fasteners > hexagon head screws > full thread DIN 933 > stainless steel A4-70 |
|---|---|
| Weight: | 0.127 kg |
| EAN: | 4043952278512 |
| CSN standard: | 021103 |
| Diameter D (mm): | M14 |
| DIN standard: | 933 |
| EN standard: | 24017 |
| Fortress class: | A4-70 |
| Head shape: | hexagonal |
| Height k (mm): | 8,8 |
| ISO standard: | ~4017 |
| Length L (mm): | 100 |
| Material: | stainless steel |
| Pitch: | 2,00 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width e (mm): | 24,49 |
| Width s (mm): | 22 |
