Hexagon thread-forming screw with collar DIN 7500D M6x10 galvanized

Product detailed description

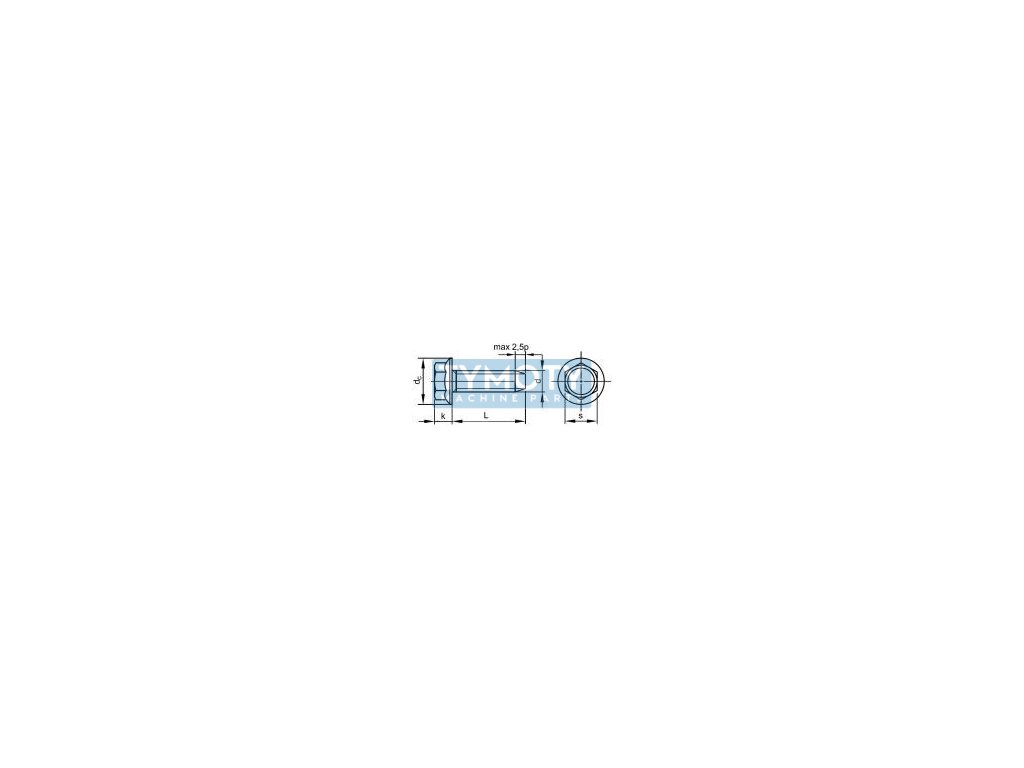

The DIN 7500D hexagon head self-tapping screw is designed to create solid metric threads directly in metal materials without the need for pre-cutting. This screw has a diameter of M6 and a length of 10 mm, while its metric thread has a pitch of 1.00 mm. The screw head is hexagonal with an integrated collar, which increases the contact surface and ensures even pressure distribution on the material being joined, thereby increasing the stability and strength of the joint.

The screw material is steel, which is surface-treated with white zinc. This surface treatment provides increased corrosion resistance, which is important when used in environments with higher humidity or outdoors. The screw belongs to the group of thread-forming screws, which are specially designed for creating threads in materials such as steel sheets or aluminum profiles, without the need for prior threading.

The DIN 7500D standard and the equivalent ČSN 21224 standard define the design and functional requirements for this type of screw, thus guaranteeing their reliability and compatibility with other components within the engineering and construction industries. The screw is suitable for applications where high joint strength and resistance to mechanical stress are required.
