Hexagon screw with toothed collar DIN 6921 M16x40-8.8 zinc
Code: 819856
Product detailed description
Steel hexagon head bolt with serrated collar, galvanized steel grade 8.8, DIN 6921.Additional parameters
| Category: | Fasteners > hexagon head screws > with toothed collar DIN 6921 > galvanized steel 8.8 |
|---|---|
| Weight: | 0.105 kg |

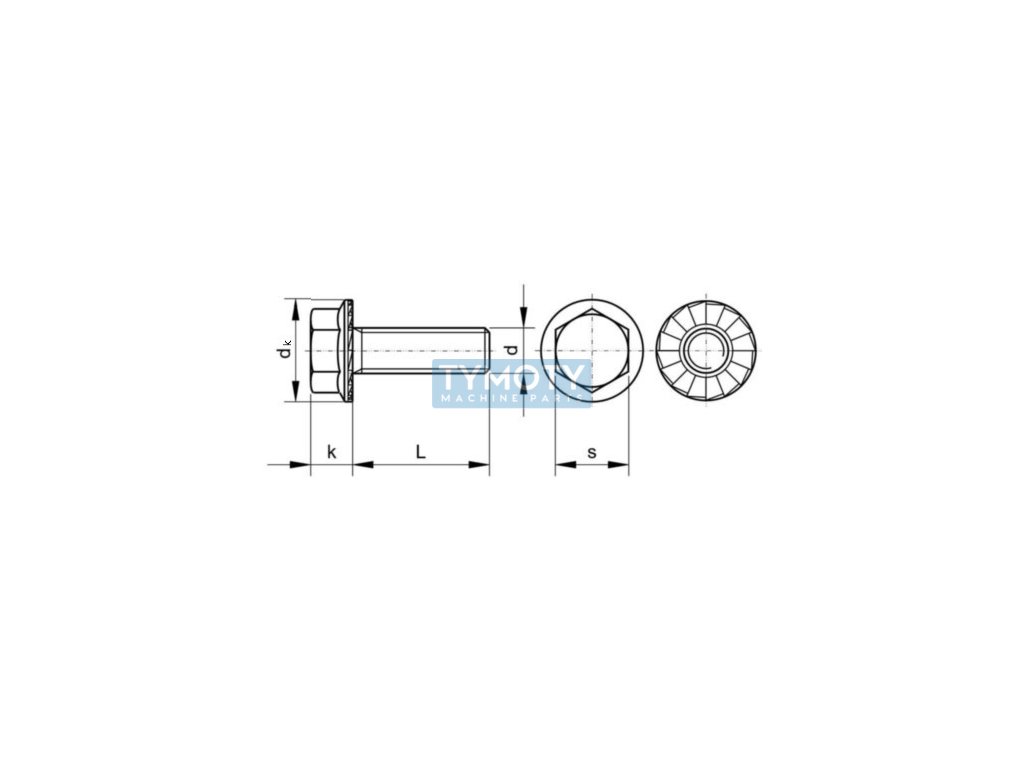

| Diameter D (mm): | M16 |
| Diameter dk (mm): | 35 |
| DIN standard: | 6921 |
| EN standard: | 1665 |
| Fortress class: | 8,8 |
| Head shape: | hexagonal with collar |
| Height k (mm): | 14,4 |
| Length L (mm): | 40 |
| Material: | steel |
| Pitch: | 2,00 |
| Surface finish: | zinc white |
| Thread length b (mm): | 38 |
| Thread type: | metric |
| Width s (mm): | 21 |
