Hexagon screw with partial thread DIN 960 M24x1.50x80-10.9

Product detailed description

The partially threaded hexagonal screw according to DIN 960, ČSN 021101 and ISO 8765 is designed for precise mechanical connections where high strength requirements are made. This screw has a metric fine thread with a diameter of M24 and a pitch of 1.5 mm. The total length of the screw is 80 mm, while the length of the threaded part is 54 mm. The screw is made of steel with a strength class of 10.9, which means that it has high tensile strength and is suitable for applications where high mechanical properties are required.

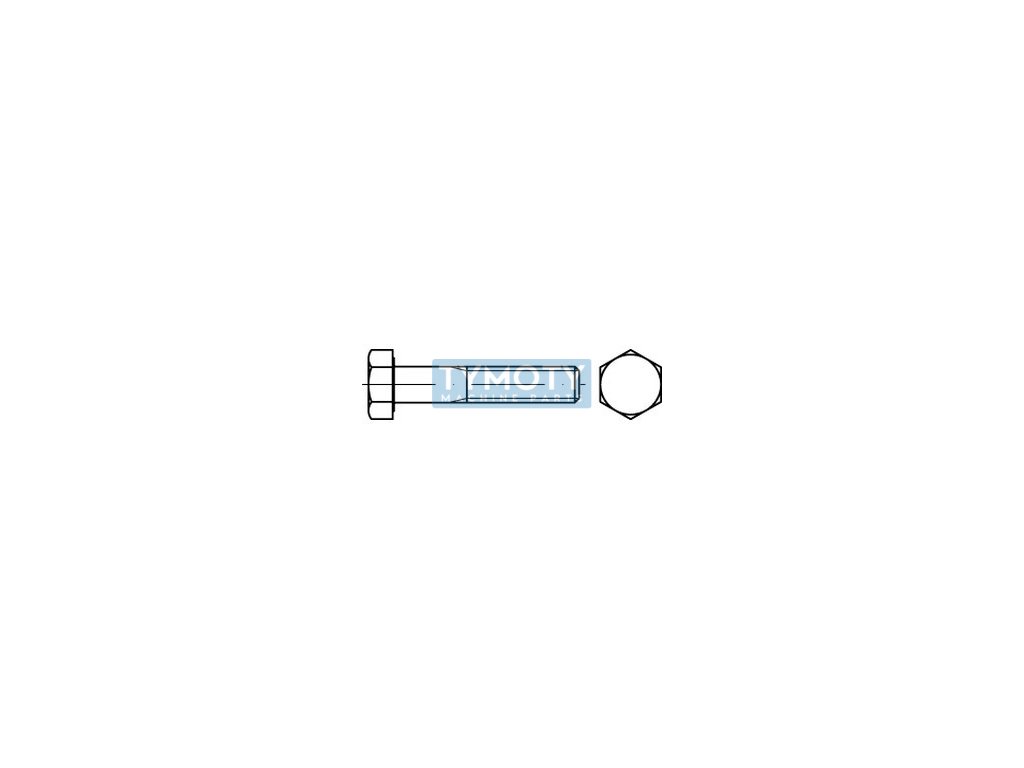

The screw head is hexagonal, which allows for effective torque transmission during assembly and disassembly. The width between the head surfaces (s) is 36 mm and the width between the diagonals (e) is 40 mm. The head height (k) is 15 mm. The screw has no surface treatment, which is important to consider when using it in an environment where it may be exposed to corrosion.

This type of screw is ideal for use in mechanical engineering and construction, where it is necessary to ensure a reliable and strong connection. Thanks to the fine thread, it is suitable for applications where precise preload control is required and where high demands are made on the strength and stability of the joints.
