Hexagon screw with partial thread DIN 960 M16x1.50x200-8.8

Product detailed description

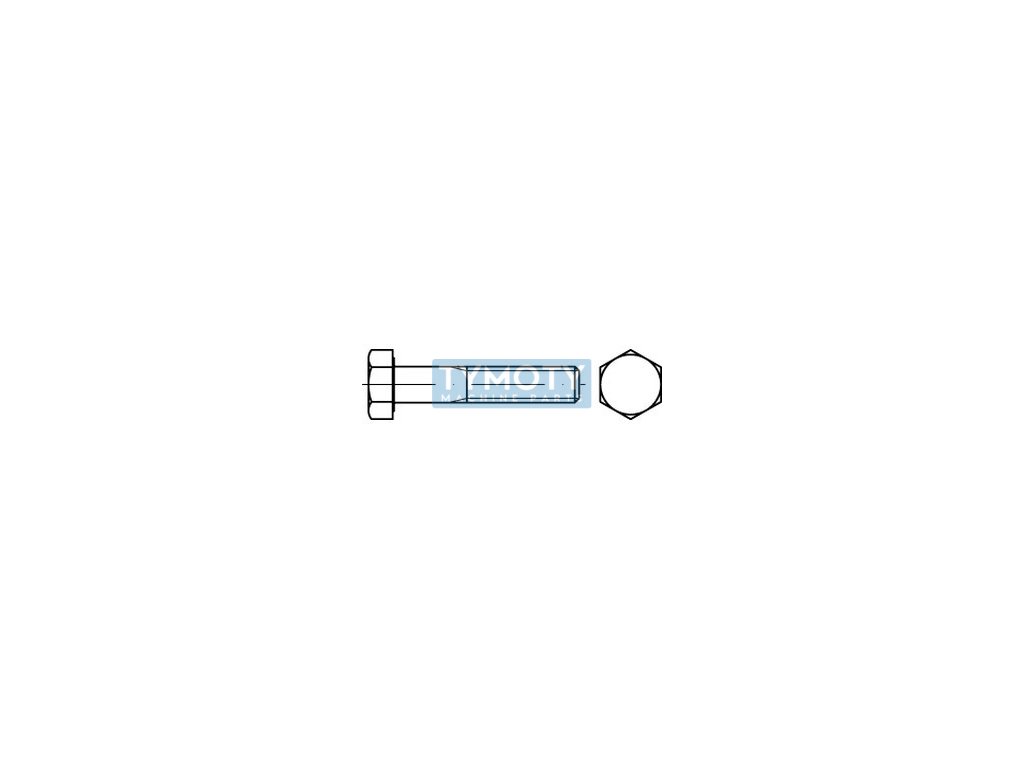

The screw with a hexagonal head and partial thread according to DIN 960, ČSN 021101 and ISO 8765 is intended for precise mechanical connections where high demands are placed on strength. This screw has a metric fine thread with a diameter of M16 and a pitch of 1.5 mm, which allows for precise and firm connection of components. The total length of the screw is 200 mm, while the thread length is 44 mm, which provides sufficient thread surface for secure fastening.

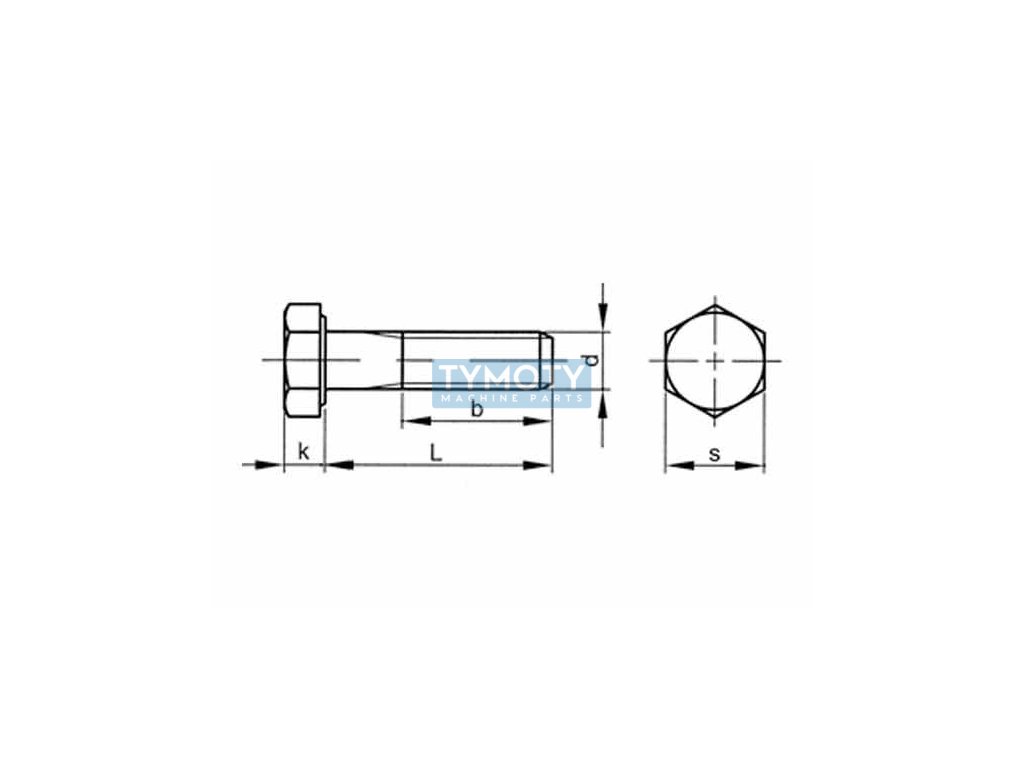

The screw head has a hexagonal shape, with dimensions of the width between the surfaces (s) of 24 mm and the width between the diagonals (e) of 26.75 mm, which allows easy handling using standard tools. The head height (k) is 10 mm, which ensures sufficient strength and stability when applying torque.

The screw is made of steel with a strength class of 8.8, which means that it has a minimum yield strength of 640 MPa and a minimum tensile strength of 800 MPa. This strength class is suitable for applications where high mechanical properties and resistance to dynamic loads are required. The surface of the screw is without surface treatment, which is suitable for applications where additional corrosion protection or aesthetic treatment is not required.

This screw is ideal for use in mechanical engineering, the automotive industry and other areas where precise and reliable connections are required. It is suitable for applications where high strength and accuracy of the threaded connection are required.
