Hexagon screw with partial thread DIN 960 M12x1.25x120-8.8
Code: 837045
Product detailed description
No product's description available
Additional parameters
| Category: | Fasteners > hexagon head screws > fine part. thread DIN 960 > steel 8.8 without treatment |
|---|---|
| Weight: | 0.122 kg |
| EAN: | 4043952311790 |
| CSN standard: | 021101 |

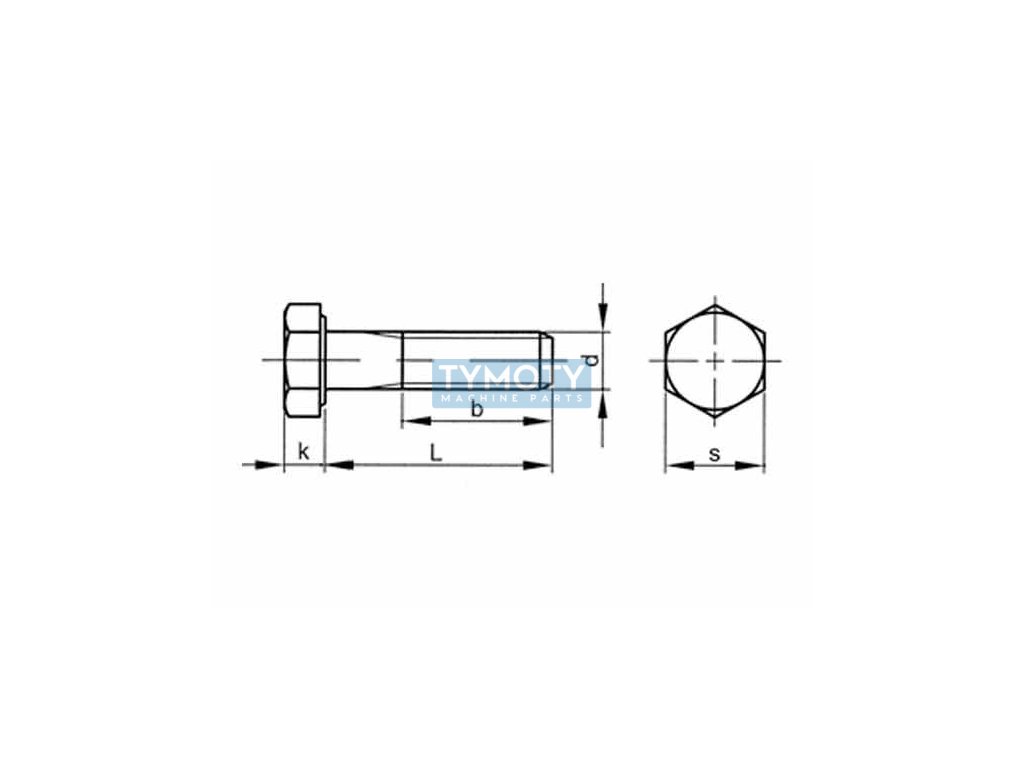

| Diameter D (mm): | M12x1,25 |
| DIN standard: | 960 |
| Fortress class: | 8,8 |
| Head shape: | hexagonal |
| Height k (mm): | 7,5 |
| ISO standard: | ~8795 |
| Length L (mm): | 120 |
| Material: | steel |
| Pitch: | 1,25 |
| Surface finish: | without modification |
| Thread length b (mm): | 30 |
| Thread type: | metric fine |
| Width e (mm): | 21,1 |
| Width s (mm): | 19 |
