Hexagon screw with partial thread DIN 960 M10x1.25x80-8.8

Product detailed description

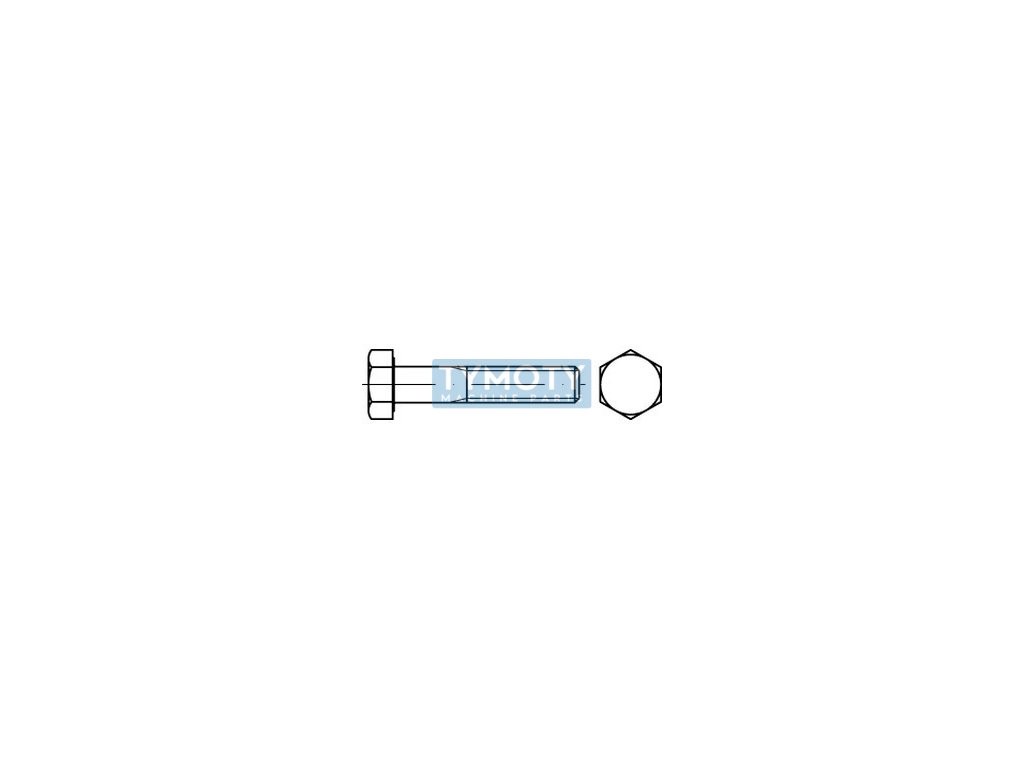

The hexagon head screw according to DIN 960, ČSN 021101 and ISO 8765 is designed for precision mechanical connections that require high strength and reliability. This component is made of steel of strength class 8.8, which means that it has a yield strength of 640 MPa and a minimum tensile strength of 800 MPa. The screw has a fine metric thread with dimensions M10x1.25, which indicates an outer thread diameter of 10 mm and a thread pitch of 1.25 mm. The total length of the screw is 80 mm, while the thread length is 26 mm, which corresponds to partial threading.

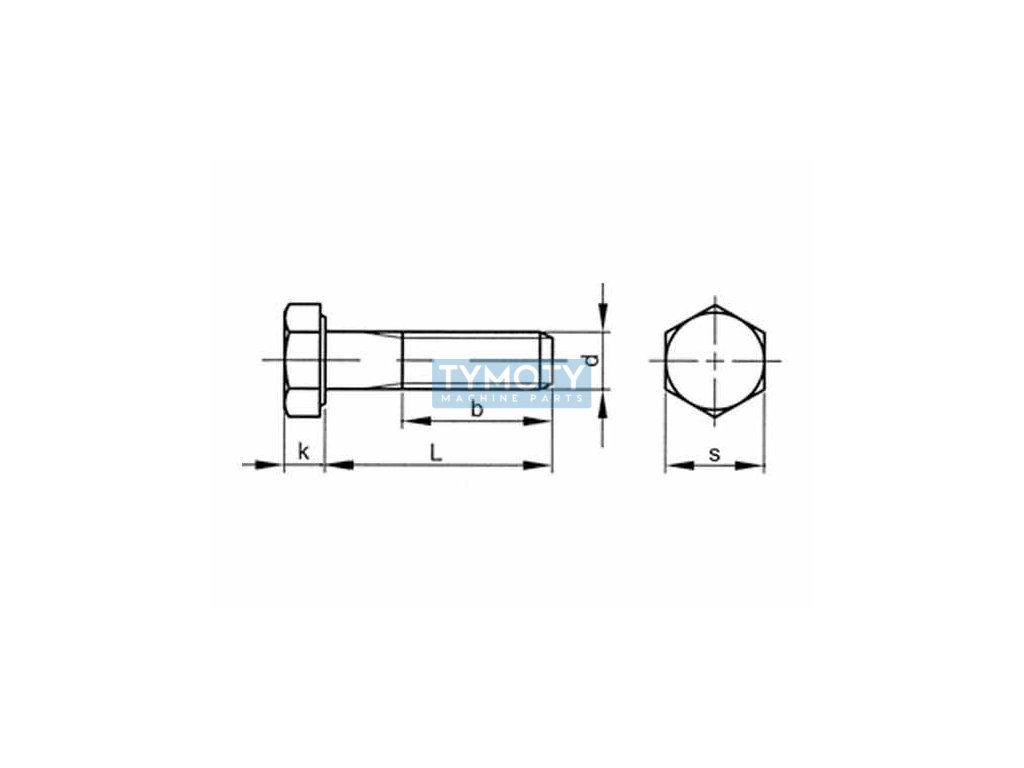

The screw head is hexagonal with dimensions of width between surfaces (s) 17 mm and width between diagonals (e) 19 mm. The head height (k) is 6.4 mm, which allows the use of standard tools for assembly and disassembly. The screw is supplied without surface treatment, which is suitable for applications where additional corrosion protection or aesthetic treatment is not required. This type of screw is ideal for applications in engineering and construction where precision and strength of the connection are required.
