Hexagon screw with partial thread DIN 960 M10x1.25x120-8.8

Product detailed description

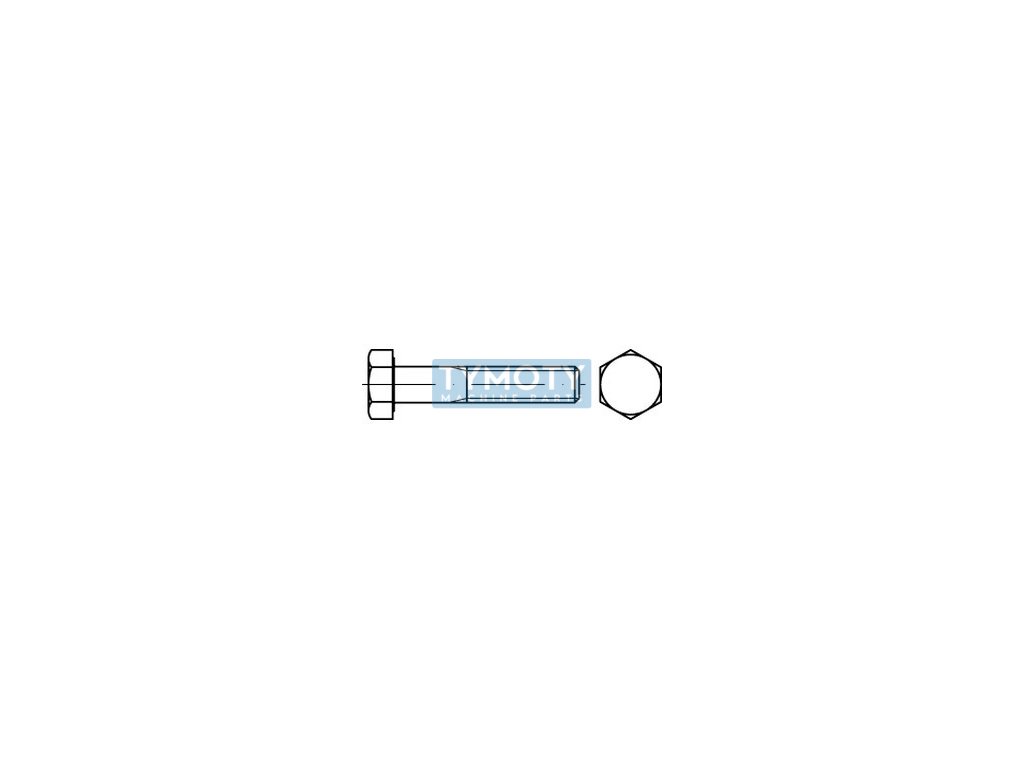

The screw with a hexagonal head and a partial fine metric thread is designed according to DIN 960, ČSN 021101 and ISO 8765. This screw has a diameter of M10 with a fine thread pitch of 1.25 mm, which makes it suitable for use in precision mechanical joints where high demands are placed on strength and accuracy. The total length of the screw is 120 mm, while the thread length is 26 mm, which allows for a firm hold even in thicker materials.

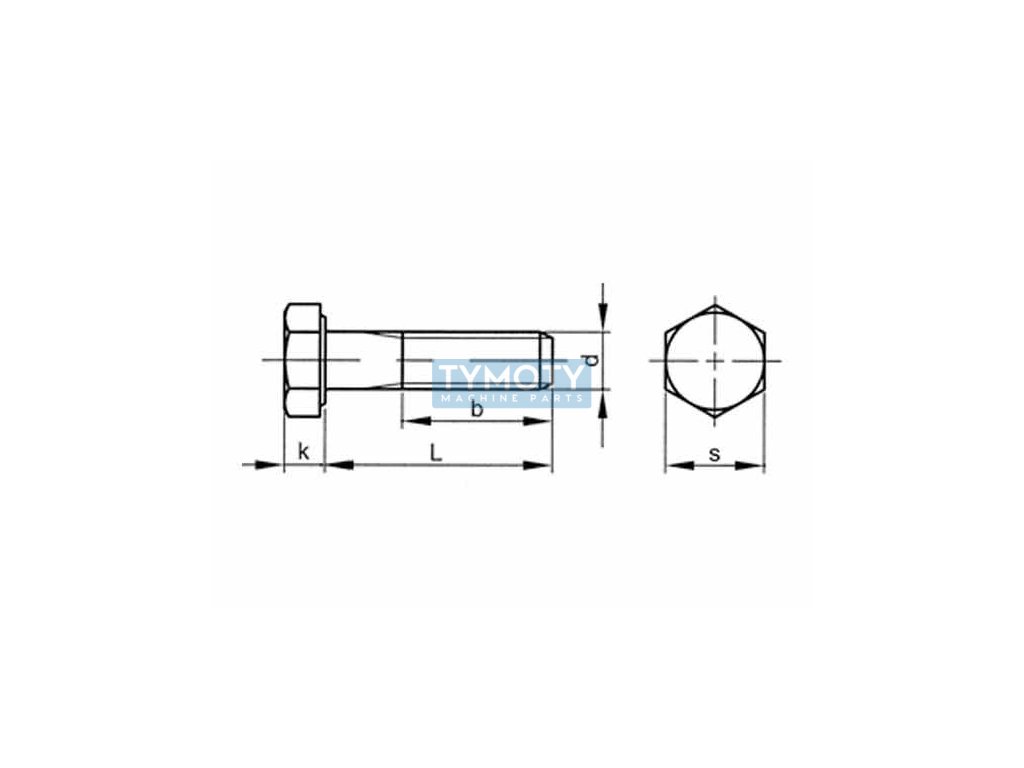

The screw head has a hexagonal shape with dimensions of 17 mm (width s) and 19 mm (width e), while the head height is 6.4 mm. This head shape allows easy handling with standard tools such as wrenches or sockets and ensures reliable torque transmission.

The screw material is steel of strength class 8.8, which means that it has a minimum yield strength of 640 MPa and a minimum tensile strength of 800 MPa. This strength class is suitable for applications where high mechanical properties and resistance to dynamic loads are required. The screw is supplied without surface treatment, which is suitable for applications where additional corrosion protection is not required or where subsequent surface treatment is planned according to specific requirements.

This screw is ideal for use in mechanical engineering, the automotive industry and other areas where reliable and precise connection of components is required.
