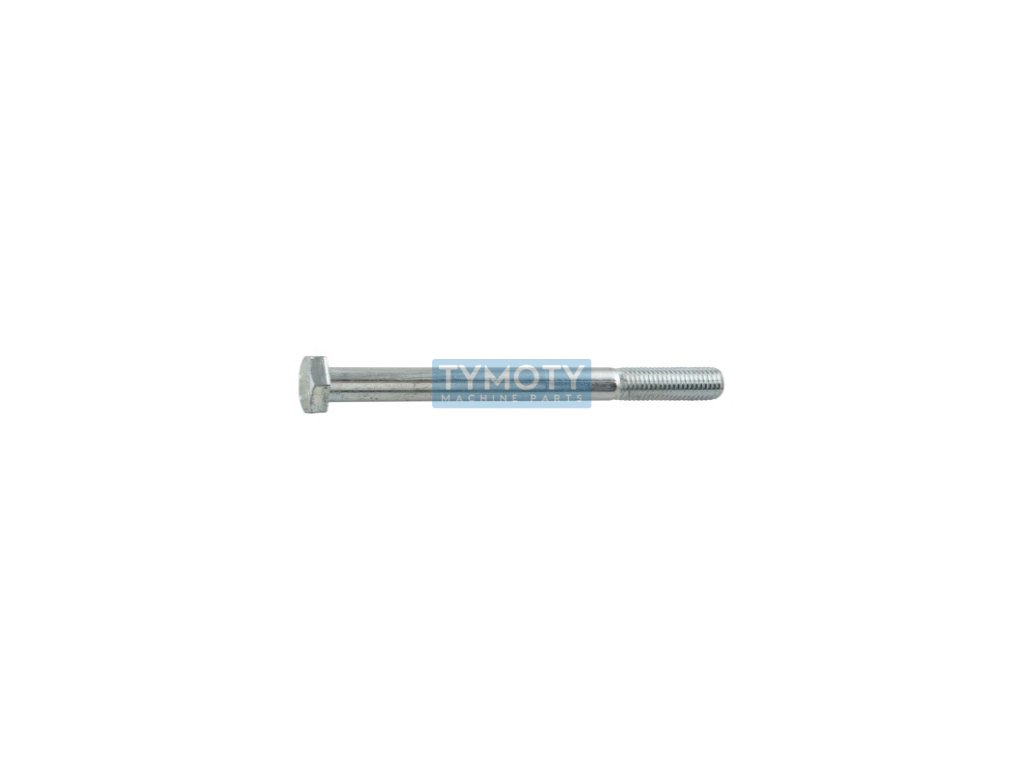

Hexagon screw with partial thread DIN 931 M27x80-8.8 galvanized

Code: 812401
Not rated
2,64 € –7 %
Hexagon screw with partial thread DIN 931 M27x80-8.8 galvanized
2,64 € –7 % 2,44 € / pcs 2,95 € incl. VAT
In stock (4072 pcs)
Delivery to:
06/08/2025
Delivery offer
Hexagon head screw, partial thread M27x80-8.8 ZN DIN 931 ČSN 021101.55 ISO 4014

Detailed information

Delivery throughout the EU

Product detailed description

Steel fastener - screw M27x80 ČSN 021101.55 - DIN 931-8.8 galvanized - steel screw with hexagonal head, made of steel of strength class 8.8 with white zinc coating, with partial metric thread M27 with standard pitch. Minimum thread length b = 60 mm. Length of screw body with thread L = 80 mm.

Additional parameters

Category: Fasteners > hexagon head screws > partial thread DIN 931 > galvanized steel 8.8
Weight: 0.511 kg
EAN: 4043952233795
CSN standard: 021101,55
Diameter D (mm): M27
DIN standard: 931
EN standard: 24014
Fortress class: 8,8
Head shape: hexagonal
Height k (mm): 17
ISO standard: 4014
Length L (mm): 80
Material: steel
Pitch: 3,00
Surface finish: zinc white
Thread length b (mm): 60
Thread type: metric
Width e (mm): 45
Width s (mm): 41
